Atezolizumab exposure across pediatric and young-adult cohorts

Two-compartment IV atezolizumab exposure with fixed weight, albumin, tumor-burden and ADA effects. Explicit finite infusions and cohort-specific source domains support conditional exploration.

Population pharmacokinetics, exposure-safety, and immunogenicity of atezolizumab in pediatric and young adult patients with cancer ↗

Journal for ImmunoTherapy of Cancer

Exploration notes · What are you exploring?

Notes stay on this browser.

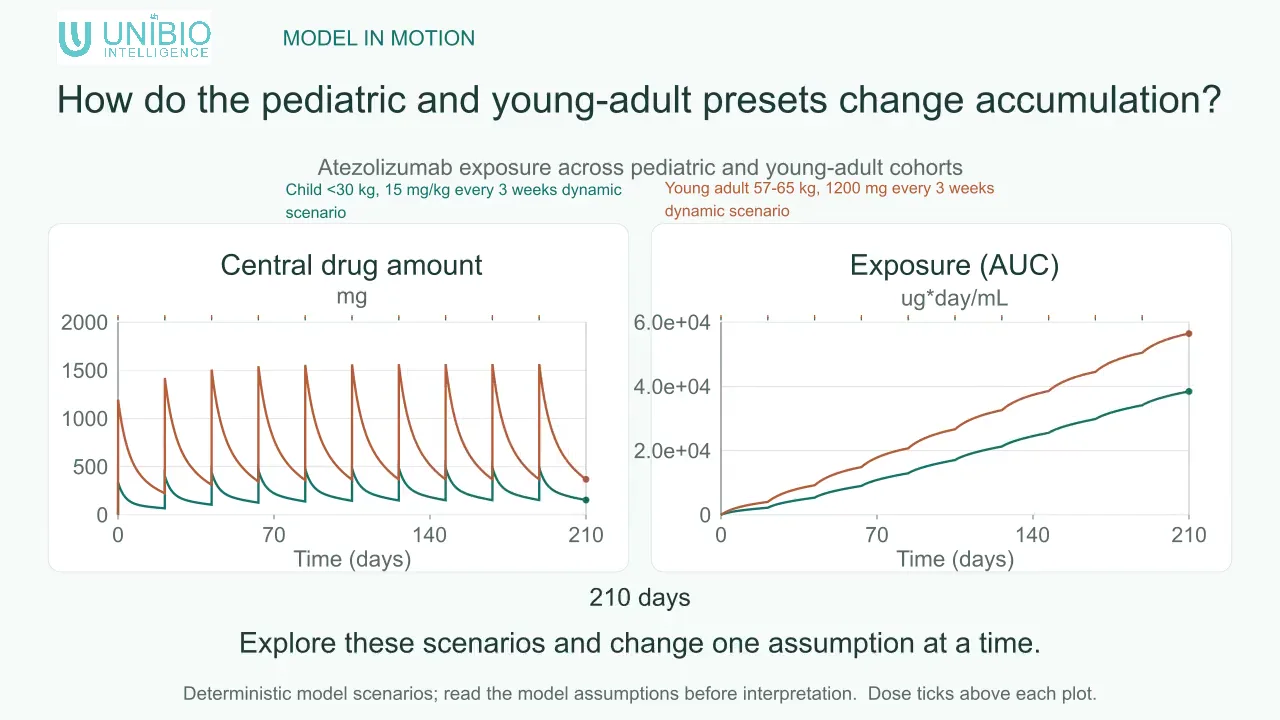

MODEL IN MOTION 18 sec

How do the pediatric and young-adult presets change accumulation?

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Infant median covariates

Conditional source fixed-effect preset. Dose amounts are fixed by default; select Recalculate paper regimen to couple weight and dose.

0–210 day

Infant median covariates

Conditional source fixed-effect preset. Dose amounts are fixed by default; select Recalculate paper regimen to couple weight and dose.

Readouts

Central atezolizumab concentration · ug/mL
Central amount divided by covariate-adjusted central volume; mg/L and ug/mL have equal numerical values.
Exposure (AUC) · ug*day/mL
Continuous integral of central concentration from the selected simulation start, using the supplied initial state.
Systemic clearance · L/day
Fixed-effect clearance scaled by weight, albumin, tumor burden and anti-drug-antibody status.
Central distribution volume · L
Central volume scaled by weight and albumin; age cohort is context rather than an age covariate.

Study purpose

  • How do the selected cohort covariates and explicitly chosen dose policy change central exposure?

Assumptions

  • Exposure uses fixed effects; population variability and prediction intervals are not modeled.
  • Age group sets covariate ranges and dosing. Age and maturation are not modeled in the PK equations.
  • The infant cohort had two participants, aged seven months or older. Covariate ranges do not capture individual patient combinations.
  • “Keep selected dose” preserves mg after edits. “Recalculate paper regimen” uses 15 mg/kg (maximum 1,200 mg) for children or 1,200 mg for young adults.
  • Both dosing modes use 10 infusions, 21 days apart: 60 minutes for the first, then 30 minutes.
  • The 6 µg/mL benchmark comes from preclinical data. Its indicator shows current concentration, not trough exposure, efficacy, or population target attainment.
  • AUC accumulates from the selected start time and initial state; earlier exposure is excluded.
  • Random effects, residual error, population exposure distributions, and full published figures are not reproduced. Fitting and server scans are unavailable.

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Covariate

Body weight used for body-size scaling in the model. Model limits: 8.7–9.5.

kg
9.1 → —

Albumin coefficient used by the released system of model equations. Model limits: 30–35.

g/L
33 → —

Tumor burden coefficient used by the released system of model equations. Model limits: 35–83.

mm
59 → —

Ada positive indicator coefficient used by the released system of model equations.

—
0 → —
Simulation time
day
day
210 → 168

Time between reported samples.

day
0.25 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

Two-compartment IV atezolizumab exposure with fixed weight, albumin, tumor-burden and ADA effects. Explicit finite infusions and cohort-specific source domains support conditional exploration.

Two-compartment IV atezolizumab exposure with fixed weight, albumin, tumor-burden and ADA effects. Explicit finite infusions and cohort-specific source domains support conditional exploration.

Model details

19 parameters · 4 states · 4 equations · 35 derived outputs

Classification & API access
Therapeutic
Atezolizumab
Modality
Monoclonal antibody
Target
PD-L1 / CD274
Disease / scope
Pediatric and young-adult malignancies
ParameterDefaultUnitDescription
Reference systemic clearanceCL_ref_L_day0.217L/dayReference systemic clearance governing removal of modeled material from the relevant compartment.
Intercompartmental clearanceQ_L_day0.183L/dayIntercompartmental clearance governing exchange between model compartments.
Reference central distribution volumeV1_ref_L3.01LReference central distribution volume used to convert modeled amount to concentration in the relevant compartment.
Reference peripheral distribution volumeV2_ref_L1.36LReference peripheral distribution volume used to convert modeled amount to concentration in the relevant compartment.
Ada positive indicatorada_positive0—Ada positive indicator coefficient used by the released system of model equations.
Albuminalbumin_g_L40g/LAlbumin coefficient used by the released system of model equations.
Reference albuminalbumin_ref_g_L40g/LReference albumin coefficient used by the released system of model equations.
Body weightbody_weight_kg38.9kgBody weight used for body-size scaling in the model.
Reference body weightbody_weight_ref_kg77kgReference body weight used for body-size scaling in the model.
Dose routed to centraldose_to_central_fraction1—Dose routed to central represented as a dimensionless fraction in the released equations.
Target troughtarget_trough_ug_mL6µg/mLPreclinical-derived 6 ug/mL concentration benchmark. Instantaneous flag is not efficacy, cycle1 trough, or population target-attainment probability.
Ada multiplier on clearancetheta_ada_CL1.23—Ada multiplier on clearance governing removal of modeled material from the relevant compartment.
Albumin exponent on clearancetheta_albumin_CL-1.18—Albumin exponent on clearance governing removal of modeled material from the relevant compartment.
Albumin exponent on distribution volume 1theta_albumin_V1-0.566—Albumin exponent on distribution volume 1 used to convert modeled amount to concentration in the relevant compartment.
Tumor burden exponent on clearancetheta_tumor_CL0.122—Tumor burden exponent on clearance governing removal of modeled material from the relevant compartment.
Weight exponent on clearancetheta_weight_CL0.795—Weight exponent on clearance governing removal of modeled material from the relevant compartment.
Weight exponent on distribution volume 1theta_weight_V10.766—Weight exponent on distribution volume 1 used to convert modeled amount to concentration in the relevant compartment.
Tumor burdentumor_burden_mm63mmTumor burden coefficient used by the released system of model equations.
Reference tumor burdentumor_ref_mm63mmReference tumor burden coefficient used by the released system of model equations.
