Envafolimab subcutaneous population PK

A subcutaneous population PK model representing envafolimab absorption, systemic concentration, renal-function covariates, and time-varying clearance.

Model-informed drug development of envafolimab, a subcutaneously injectable PD-L1 antibody, in patients with advanced solid tumors ↗

The Oncologist

Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

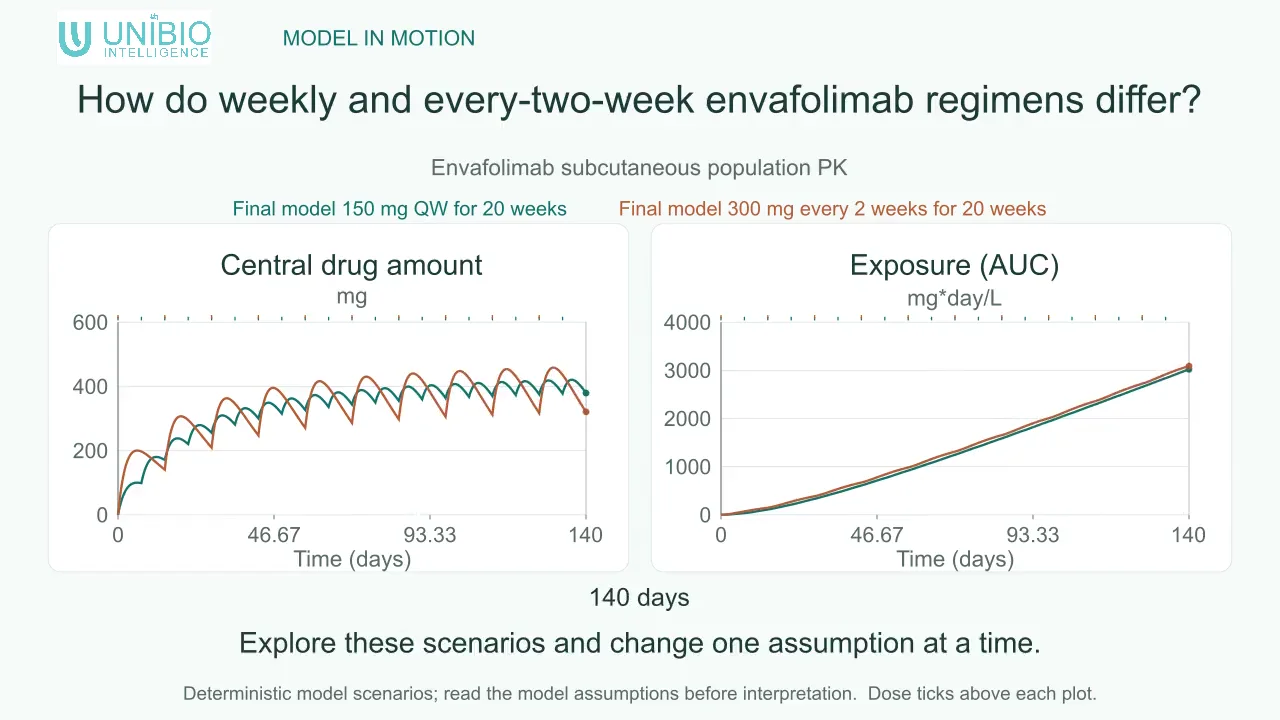

How do weekly and every-two-week envafolimab regimens differ?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Final model 150 mg QW for 20 weeks

How do dosing interval, renal function, and time-varying clearance change envafolimab exposure?

0–140 day

Scenario details

Final model 150 mg QW for 20 weeks

How do dosing interval, renal function, and time-varying clearance change envafolimab exposure?

Readouts

Envafolimab concentration · Unit unavailable
Envafolimab concentration over the selected simulation window.
Exposure (AUC) · mg*day/L
Exposure (AUC) over the selected simulation window.
Individual clearance · Unit unavailable
Individual clearance over the selected simulation window.
Absorption rate constant · Unit unavailable
Absorption rate constant over the selected simulation window.

Study purpose

  • How do dosing interval, renal function, and time-varying clearance change envafolimab exposure?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Absorption rate constant governing entry from the administration site.

1/hr

Suggested: 0.00735–0.0221. You can explore beyond this range.

0.0147 → —

Typical clearance governing removal of modeled material from the relevant compartment.

L/hr

Suggested: 0.0239–0.0717. You can explore beyond this range.

0.0478 → —

Apparent distribution volume coefficient used by the released system of model equations.

L

Suggested: 7.75–23.3. You can explore beyond this range.

15.5 → —

Time to half-maximal change coefficient used by the released system of model equations.

day

Suggested: 17–51. You can explore beyond this range.

34 → —

Creatinine clearance coefficient used by the released system of model equations.

mL/min

Suggested: 47.6–143. You can explore beyond this range.

95.14 → —
Simulation time
day
day
140 → 168

Time between reported samples.

day
0.25 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

A subcutaneous envafolimab dose enters a depot, is absorbed into central systemic exposure, and undergoes clearance modulated by renal function, elapsed time, and a country factor. Central concentration accumulates as exposure.

How do subcutaneous absorption and time-varying clearance shape envafolimab exposure?A subcutaneous envafolimab dose enters a depot, is absorbed into central systemic exposure, and undergoes clearance modulated by renal function, elapsed time, and a country factor. Central concentration accumulates as exposure.BIOLOGY OVERVIEWHow do subcutaneous absorption and time-varying clearance shape envafolimabexposure?Subcutaneous dose: Envafolimab inputSubcutaneous doseEnvafolimab inputSC depot: First-order absorptionSC depotFirst-order absorptionSystemic exposure: Central envafolimab amountSystemic exposureCentral envafolimab amountClearance drivers: Renal function, time, countryClearance driversRenal function, time, countryTime-varying clearance: Central concentration lossTime-varyingclearanceCentral concentration lossCumulative exposure: Central concentration integralCumulativeexposureCentral concentration integralPRIMARY READOUTSEnvafolimab concentrationEnvafolimab concentrationCumulative exposureCumulative exposureIndividual clearanceIndividual clearanceAbsorption rateAbsorption rate

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: PD-L1 binding or occupancy, tumor immunity, efficacy, peripheral distribution, and target-mediated disposition are not represented.

Modeled relationships (5)
  • Subcutaneous dose → SC depot: SC input (flow)
  • SC depot → Systemic exposure: absorption (flow)
  • Systemic exposure → Time-varying clearance: CL(t) (loss)
  • Clearance drivers → Time-varying clearance: modifies CL (modulation)
  • Systemic exposure → Cumulative exposure: integrates C (production)

Modeled relationships: Subcutaneous dose to SC depot: SC input (flow); SC depot to Systemic exposure: absorption (flow); Systemic exposure to Time-varying clearance: CL(t) (loss); Clearance drivers to Time-varying clearance: modifies CL (modulation); Systemic exposure to Cumulative exposure: integrates C (production).

Primary readouts: Envafolimab concentration; Cumulative exposure; Individual clearance; Absorption rate.

Model details

9 parameters · 4 states · 4 equations · 11 derived outputs

Classification & API access
Therapeutic
Envafolimab
Modality
Monoclonal antibody
Target
PD-L1 / CD274
Disease / scope
PD-L1-positive solid tumors
ParameterDefaultUnitDescription
Clearance creatinine clearance powercl_crcl_power0.475—Clearance creatinine clearance power governing removal of modeled material from the relevant compartment.
Country factorcountry_factor1—Country factor coefficient used by the released system of model equations.
Creatinine clearancecrcl_ml_min95.14mL/minCreatinine clearance coefficient used by the released system of model equations.
Creatinine clearance referencecrcl_ref_ml_min95.14mL/minCreatinine clearance reference coefficient used by the released system of model equations.
Maximum effectemax-0.439—Maximum effect defining the limiting magnitude of the corresponding pharmacodynamic effect.
Absorption rate constantka_hr0.01471/hrAbsorption rate constant governing entry from the administration site.
Time to half-maximal changet50_day34dayTime to half-maximal change coefficient used by the released system of model equations.
Typical clearancetheta_cl_l_hr0.0478L/hrTypical clearance governing removal of modeled material from the relevant compartment.
Apparent distribution volumev_l15.5LApparent distribution volume coefficient used by the released system of model equations.
