T-cell-engager cytokine-release network

A cytokine-network QSP model coupling drug exposure to resting, activated, cytotoxic, and exhausted T cells and to IL-6, IL-10, IL-1beta, IFN-gamma, and TNF-alpha dynamics.

A PK-Driven Quantitative Systems Pharmacology Model Predicts Cytokine Release Syndrome Severity Across T Cell-Activating Therapies via a Locked Cytokine Amplification Network ↗
Exploration notes · What are you exploring?

Notes stay on this browser.

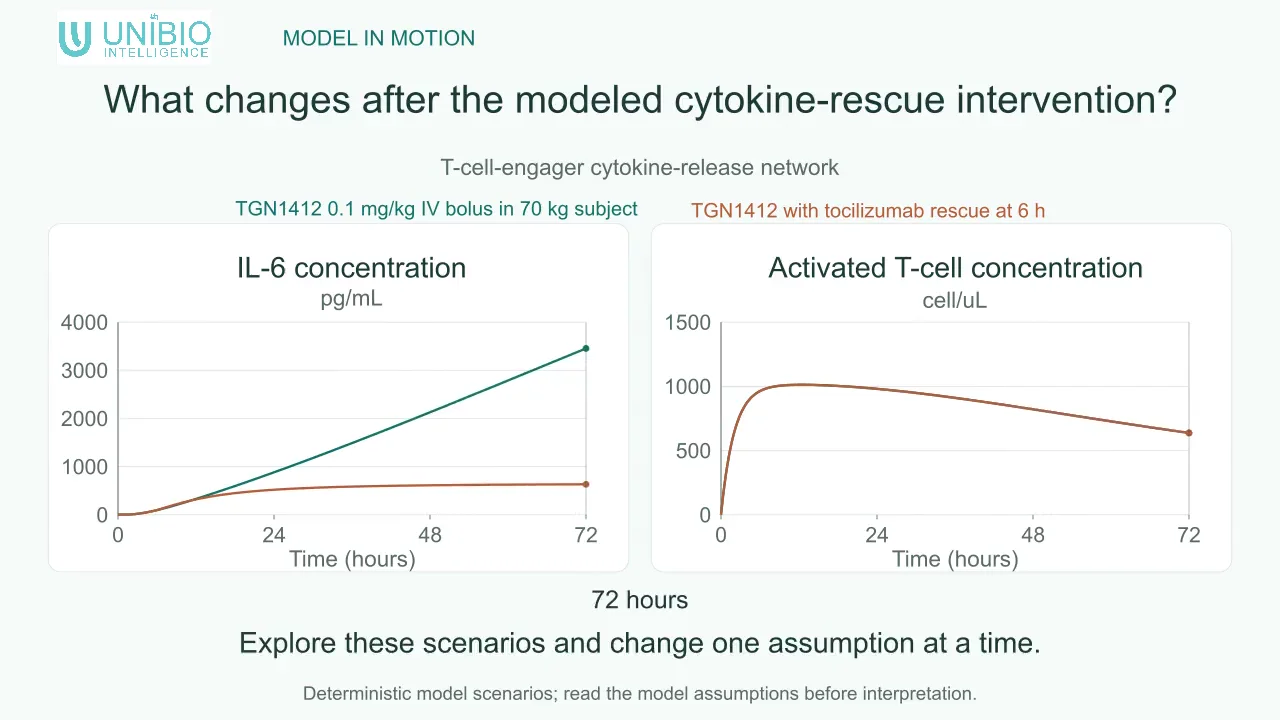

MODEL IN MOTION 18 sec

What changes after the modeled cytokine-rescue intervention?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

blinatumomab 28 ug/day continuous infusion through day 28

How do drug exposure and immune feedback shape T-cell activation and the timing and magnitude of cytokine release? Explore this biological starting configuration through T-cell agonist concentration, Activated T cells, IL-6, IFN-gamma, TNF-alpha.

0–672 hour

Scenario details

blinatumomab 28 ug/day continuous infusion through day 28

How do drug exposure and immune feedback shape T-cell activation and the timing and magnitude of cytokine release? Explore this biological starting configuration through T-cell agonist concentration, Activated T cells, IL-6, IFN-gamma, TNF-alpha.

Readouts

Drug concentration · nM
Drug concentration over the selected simulation window.
Activated t · cell/uL
Activated t over the selected simulation window.
Il 6 · pg/mL
Il 6 over the selected simulation window.
Ifn gamma · pg/mL
Ifn gamma over the selected simulation window.
Tnf alpha · pg/mL
Tnf alpha over the selected simulation window.

Study purpose

  • How do drug exposure and immune feedback shape T-cell activation and the timing and magnitude of cytokine release?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Systemic clearance governing removal of modeled material from the relevant compartment.

L/h

Suggested: 1.05–3.15. You can explore beyond this range.

2.1 → —

T-cell activation EC50 at which the corresponding modeled effect reaches half of its maximum.

nM

Suggested: 0.5–1.5. You can explore beyond this range.

1 → —

Maximum activated T-cell concentration coefficient used by the released system of model equations.

cell/µL

Suggested: 2,500–7,500. You can explore beyond this range.

5000 → —

Macrophage activation EC50 at which the corresponding modeled effect reaches half of its maximum.

pg/mL

Suggested: 24.3–72.9. You can explore beyond this range.

48.6 → —

IC50 IL-10 at which the corresponding modeled process is inhibited by half.

pg/mL

Suggested: 25–75. You can explore beyond this range.

50 → —
Simulation time
h
h
672 → 168

Time between reported samples.

h
2 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

A continuous or initialized T-cell agonist exposure activates a resting-to-activated-to-cytotoxic and exhausted T-cell program. Cytotoxic T cells and an algebraic macrophage signal produce cytokines, while IL-10 suppresses pro-inflammatory production and an optional rescue switch changes IL-6 feedback behavior.

How do T-cell agonist exposure and immune feedback shape cytokine release?A continuous or initialized T-cell agonist exposure activates a resting-to-activated-to-cytotoxic and exhausted T-cell program. Cytotoxic T cells and an algebraic macrophage signal produce cytokines, while IL-10 suppresses pro-inflammatory production and an optional rescue switch changes IL-6 feedback behavior.BIOLOGY OVERVIEWHow do T-cell agonist exposure and immune feedback shape cytokine release?T-cell agonist input: Infusion or initialized comparatorT-cell agonistinputInfusion or initializedcomparatorAgonist exposure: Modeled concentration CdrugAgonist exposureModeled concentration CdrugT-cell program: Resting, activated, cytotoxic, exhaustedT-cell programResting, activated, cytotoxic,exhaustedMacrophage signal: Algebraic cytokine-production driveMacrophage signalAlgebraic cytokine-productiondrivePro-inflammatory cytokines: IL-6, IL-1β, IFN-γ and TNF-αPro-inflammatorycytokinesIL-6, IL-1β, IFN-γ and TNF-αIL-10 feedback: Suppresses modeled productionIL-10 feedbackSuppresses modeled productionOptional IL-6 feedback: Scenario switch includes rescue behaviorOptional IL-6feedbackScenario switch includesrescue behaviorPRIMARY READOUTSAgonist concentrationAgonist concentrationActivated T cellsActivated T cellsIL-6IL-6IFN-γIFN-γTNF-αTNF-α

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: CD19/CD3/CD28 and IL-6R binding, tissue compartments, dynamic macrophage-cell states, and tocilizumab PK or occupancy are not represented.

Modeled relationships (9)
  • T-cell agonist input → Agonist exposure: input (flow)
  • Agonist exposure → T-cell program: activation (modulation)
  • T-cell program → Pro-inflammatory cytokines: IFN-γ / TNF-α (production)
  • Pro-inflammatory cytokines → Macrophage signal: macrophage drive (modulation)
  • Macrophage signal → Pro-inflammatory cytokines: IL-6 / IL-1β (production)
  • Macrophage signal → IL-10 feedback: IL-10 (production)
  • IL-10 feedback → Pro-inflammatory cytokines: suppression (modulation)
  • Pro-inflammatory cytokines → Optional IL-6 feedback: IL-6 feedback (modulation)
  • Optional IL-6 feedback → Pro-inflammatory cytokines: switchable (modulation)

Modeled relationships: T-cell agonist input to Agonist exposure: input (flow); Agonist exposure to T-cell program: activation (modulation); T-cell program to Pro-inflammatory cytokines: IFN-γ / TNF-α (production); Pro-inflammatory cytokines to Macrophage signal: macrophage drive (modulation); Macrophage signal to Pro-inflammatory cytokines: IL-6 / IL-1β (production); Macrophage signal to IL-10 feedback: IL-10 (production); IL-10 feedback to Pro-inflammatory cytokines: suppression (modulation); Pro-inflammatory cytokines to Optional IL-6 feedback: IL-6 feedback (modulation); Optional IL-6 feedback to Pro-inflammatory cytokines: switchable (modulation).

Primary readouts: Agonist concentration; Activated T cells; IL-6; IFN-γ; TNF-α.

Model details

33 parameters · 11 states · 11 equations · 46 derived outputs

Classification & API access
Therapeutic
Blinatumomab and comparator T-cell agonists
Modality
Bispecific antibody / T-cell engager
Target
CD19, CD3, CD28, IL-6R / CD126
Disease / scope
Cytokine-release syndrome
ParameterDefaultUnitDescription
Systemic clearanceCL_L_h2.1L/hSystemic clearance governing removal of modeled material from the relevant compartment.
T-cell activation EC50EC50_act_nM1nMT-cell activation EC50 at which the corresponding modeled effect reaches half of its maximum.
Macrophage activation EC50EC50_mac_pg_ml48.6pg/mLMacrophage activation EC50 at which the corresponding modeled effect reaches half of its maximum.
IC50 IL-10IC50_IL10_pg_ml50pg/mLIC50 IL-10 at which the corresponding modeled process is inhibited by half.
IL-6 baselineIL6_baseline_pg_ml5pg/mLIL-6 baseline coefficient used by the released system of model equations.
Km fbKm_fb_pg_ml50pg/mLKm fb coefficient used by the released system of model equations.
Km recruitKm_recruit_pg_ml1000pg/mLKm recruit coefficient used by the released system of model equations.
Maximum activated T-cell concentrationTact_max_cells_ul5000cell/µLMaximum activated T-cell concentration coefficient used by the released system of model equations.
VcentralVcentral_L3.5LVcentral coefficient used by the released system of model equations.
Drugdrug_nmol_per_mg18.484288354898336nmol/mgDrug coefficient used by the released system of model equations.
Infusioninfusion_mg_h0.0011666666666666668mg/hInfusion coefficient used by the released system of model equations.
Kactkact_h0.081/hKact coefficient used by the released system of model equations.
Degradation rate IFNγkdeg_IFNg_h0.31/hDegradation rate IFNγ governing loss, degradation, or removal in the modeled biological process.
Degradation rate IL-10kdeg_IL10_h0.351/hDegradation rate IL-10 governing loss, degradation, or removal in the modeled biological process.
Degradation rate il1bkdeg_IL1b_h0.41/hDegradation rate il1b governing loss, degradation, or removal in the modeled biological process.
Degradation rate IL-6kdeg_IL6_h0.5191/hDegradation rate IL-6 governing loss, degradation, or removal in the modeled biological process.
Degradation rate TNFαkdeg_TNFa_h0.71/hDegradation rate TNFα governing loss, degradation, or removal in the modeled biological process.
Kdiffkdiff_h0.031/hKdiff coefficient used by the released system of model equations.
Kexhaustkexhaust_h0.0051/hKexhaust coefficient used by the released system of model equations.
Kfbkfb_h0.5281/hKfb coefficient used by the released system of model equations.
Kmac recruitkmac_recruit5—Kmac recruit coefficient used by the released system of model equations.
Kprod IFNγkprod_IFNg_pg_ml_h_per_cell_ul0.3(pg/mL/h)/(cell/µL)Kprod IFNγ governing production or formation in the modeled biological process.
Kprod IL-10 mackprod_IL10_mac_pg_ml_h_per_cell_ul0.01(pg/mL/h)/(cell/µL)Kprod IL-10 mac governing production or formation in the modeled biological process.
Kprod il1b mackprod_IL1b_mac_pg_ml_h_per_cell_ul0.002(pg/mL/h)/(cell/µL)Kprod il1b mac governing production or formation in the modeled biological process.
Kprod IL-6 mackprod_IL6_mac_pg_ml_h_per_cell_ul0.108(pg/mL/h)/(cell/µL)Kprod IL-6 mac governing production or formation in the modeled biological process.
Kprod TNFαkprod_TNFa_pg_ml_h_per_cell_ul0.15(pg/mL/h)/(cell/µL)Kprod TNFα governing production or formation in the modeled biological process.
Kprolifkprolif_h0.031/hKprolif coefficient used by the released system of model equations.
Macpoolmacpool_cells_ul_equiv465cell/µLMacpool coefficient used by the released system of model equations.
NnH1.5—N coefficient used by the released system of model equations.
Tocilizumab enabledtocilizumab_enabled0—Tocilizumab enabled coefficient used by the released system of model equations.
Tocilizumab starttocilizumab_start_h1000000000hTocilizumab start coefficient used by the released system of model equations.
Zero cytokinezero_cytokine_pg_ml0pg/mLZero cytokine coefficient used by the released system of model equations.
Zero drugzero_drug_nm0nMZero drug coefficient used by the released system of model equations.
