Zenocutuzumab PK and tumor-growth dynamics

A translational PK/PD model coupling zenocutuzumab distribution and nonlinear clearance to concentration-dependent tumor-cell death and net tumor-volume dynamics.

Translational PK-PD modeling analysis of MCLA-128, a HER2/HER3 bispecific monoclonal antibody, to predict clinical efficacious exposure and dose ↗

Investigational New Drugs

Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

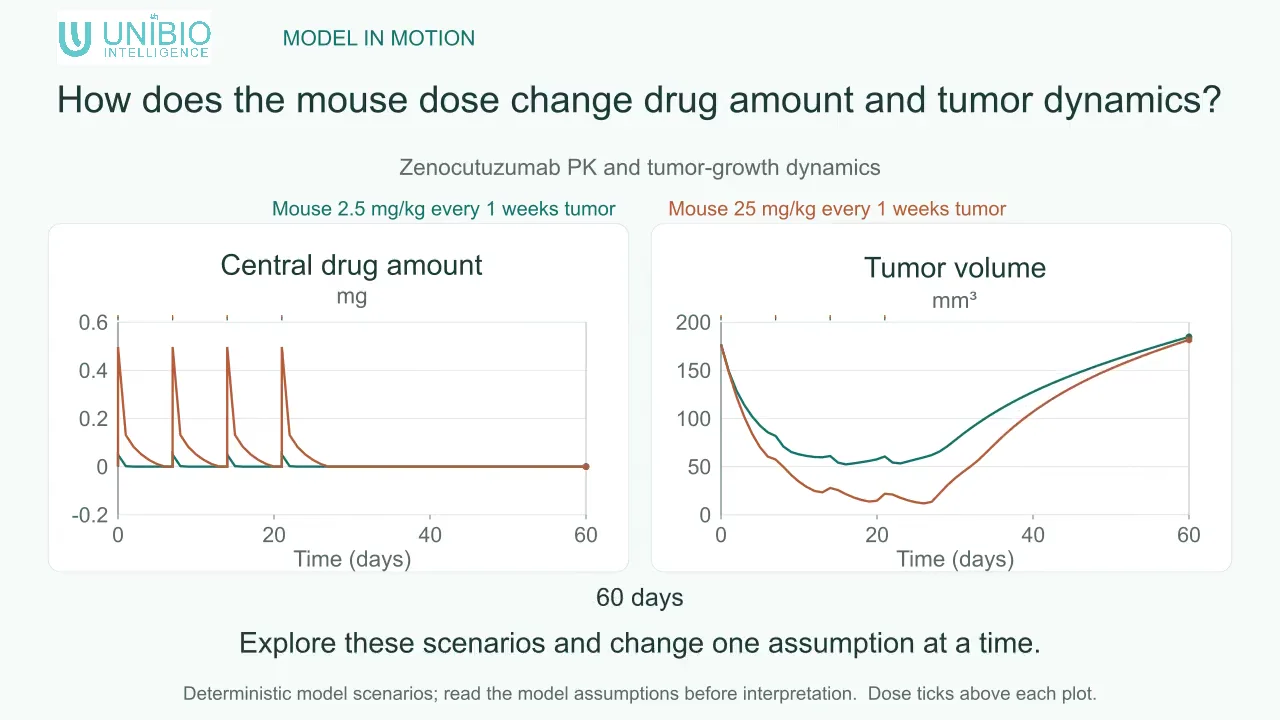

How does the mouse dose change drug amount and tumor dynamics?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Human 360 mg every 3 weeks receptor occupancy

How does zenocutuzumab exposure translate into tumor-growth inhibition over time?

0–504 hour

Scenario details

Human 360 mg every 3 weeks receptor occupancy

How does zenocutuzumab exposure translate into tumor-growth inhibition over time?

Readouts

Central zenocutuzumab concentration · Unit unavailable
Central zenocutuzumab concentration over the selected simulation window.
Peripheral zenocutuzumab concentration · Unit unavailable
Peripheral zenocutuzumab concentration over the selected simulation window.
Tumor volume · millimeter**3
Tumor volume over the selected simulation window.
Drug modified tumor growth · dimensionless
Drug modified tumor growth over the selected simulation window.
Exposure (AUC) · mg*h/L
Exposure (AUC) over the selected simulation window.

Study purpose

  • How does zenocutuzumab exposure translate into tumor-growth inhibition over time?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Systemic clearance governing removal of modeled material from the relevant compartment.

L/h

Suggested: 0.00625–0.0188. You can explore beyond this range.

0.0125 → —

Central distribution volume used to convert modeled amount to concentration in the relevant compartment.

L

Suggested: 1.59–4.76. You can explore beyond this range.

3.17 → —

Maximum elimination rate coefficient used by the released system of model equations.

mg/h

Suggested: 0.25–0.75. You can explore beyond this range.

0.5 → —

Michaelis constant coefficient used by the released system of model equations.

mg/L

Suggested: 0.11–0.329. You can explore beyond this range.

0.219 → —

Tumor-kill half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.

mg/L

Suggested: 5.10e-6–1.53e-5. You can explore beyond this range.

0.0000102 → —
Simulation time
h
h
504 → 168

Time between reported samples.

h
24 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

Intravenous zenocutuzumab enters a central pool, exchanges with a peripheral pool, and undergoes linear and saturable elimination. Central concentration separately lowers a tumor-growth drive and raises a tumor-death drive, which together change tumor volume.

How does zenocutuzumab exposure change empirical tumor growth and death drives?Intravenous zenocutuzumab enters a central pool, exchanges with a peripheral pool, and undergoes linear and saturable elimination. Central concentration separately lowers a tumor-growth drive and raises a tumor-death drive, which together change tumor volume.BIOLOGY OVERVIEWHow does zenocutuzumab exposure change empirical tumor growth and death drives?IV zenocutuzumab: Dose to central compartmentIV zenocutuzumabDose to central compartmentCentral exposure: Zenocutuzumab concentrationCentral exposureZenocutuzumab concentrationPeripheral pool: Reversible distributionPeripheral poolReversible distributionPK elimination: Linear and saturable lossPK eliminationLinear and saturable lossGrowth drive: Exposure lowers tumor growthGrowth driveExposure lowers tumor growthDeath drive: Exposure raises tumor lossDeath driveExposure raises tumor lossTumor volume: Net empirical tumor responseTumor volumeNet empirical tumor responsePRIMARY READOUTSCentral zenocutuzumab concentrationCentral zenocutuzumab conc…Peripheral concentrationPeripheral concentrationTumor volumeTumor volumeGrowth effectGrowth effectCumulative exposureCumulative exposure

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: HER2/HER3 binding, receptor occupancy or signaling, immune-effector killing, and target-mediated clearance are not represented; tumor pharmacodynamics are empirical exposure effects.

Modeled relationships (7)
  • IV zenocutuzumab → Central exposure: IV input (flow)
  • Central exposure ↔ Peripheral pool: distribution (reversible exchange)
  • Central exposure → PK elimination: linear + saturable (loss)
  • Central exposure → Growth drive: inhibits growth (modulation)
  • Growth drive → Tumor volume: growth contribution (production)
  • Central exposure → Death drive: stimulates death (modulation)
  • Death drive → Tumor volume: tumor loss (loss)

Modeled relationships: IV zenocutuzumab to Central exposure: IV input (flow); Central exposure reversibly exchanges with Peripheral pool: distribution (reversible exchange); Central exposure to PK elimination: linear + saturable (loss); Central exposure to Growth drive: inhibits growth (modulation); Growth drive to Tumor volume: growth contribution (production); Central exposure to Death drive: stimulates death (modulation); Death drive to Tumor volume: tumor loss (loss).

Primary readouts: Central zenocutuzumab concentration; Peripheral concentration; Tumor volume; Growth effect; Cumulative exposure.

Model details

14 parameters · 6 states · 6 equations · 12 derived outputs

Classification & API access
Therapeutic
Zenocutuzumab
Modality
Bispecific antibody / T-cell engager
Target
ERBB3, HER3, HER2 / ERBB2
Disease / scope
HER2/HER3-driven preclinical tumors and first-in-human translation
ParameterDefaultUnitDescription
Systemic clearanceCL_L_h0.0125L/hSystemic clearance governing removal of modeled material from the relevant compartment.
Tumor-kill half-maximal concentrationEC50_KD_mg_L0.0000102mg/LTumor-kill half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.
EC50 kioEC50_Kio_mg_L2.6mg/LEC50 kio at which the corresponding modeled effect reaches half of its maximum.
Maximum effectEmax1—Maximum effect defining the limiting magnitude of the corresponding pharmacodynamic effect.
Dissociation constantKD_1_h0.0041/hDissociation constant describing equilibrium binding affinity in the modeled interaction.
Tumor growth coefficientKG_mm3_h0.338(mm³)/hTumor growth coefficient coefficient used by the released system of model equations.
KioKio_1_h0.1431/hKio coefficient used by the released system of model equations.
Michaelis constantKm_mg_L0.219mg/LMichaelis constant coefficient used by the released system of model equations.
Intercompartmental clearanceQ_L_h0.0313L/hIntercompartmental clearance governing exchange between model compartments.
Central distribution volumeV1_L3.17LCentral distribution volume used to convert modeled amount to concentration in the relevant compartment.
Peripheral distribution volumeV2_L3.51LPeripheral distribution volume used to convert modeled amount to concentration in the relevant compartment.
Maximum elimination rateVmax_mg_h0.5mg/hMaximum elimination rate coefficient used by the released system of model equations.
Drug stimulated death scaledrug_stimulated_death_scale1—Drug stimulated death scale coefficient used by the released system of model equations.
Progression factorprogression_factor_1_week0.1721/weekProgression factor coefficient used by the released system of model equations.
