IMGN529 exposure: concentration decay and NCA references

Explore concentration decay from specified initial concentrations and constant loss rates. Published cycle-one exposure summaries are shown separately as reference data.

Safety, tolerability, and preliminary activity of IMGN529, a CD37-targeted antibody-drug conjugate, in patients with relapsed or refractory B-cell non-Hodgkin lymphoma: a dose-escalation, phase I study ↗

Investigational New Drugs

Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

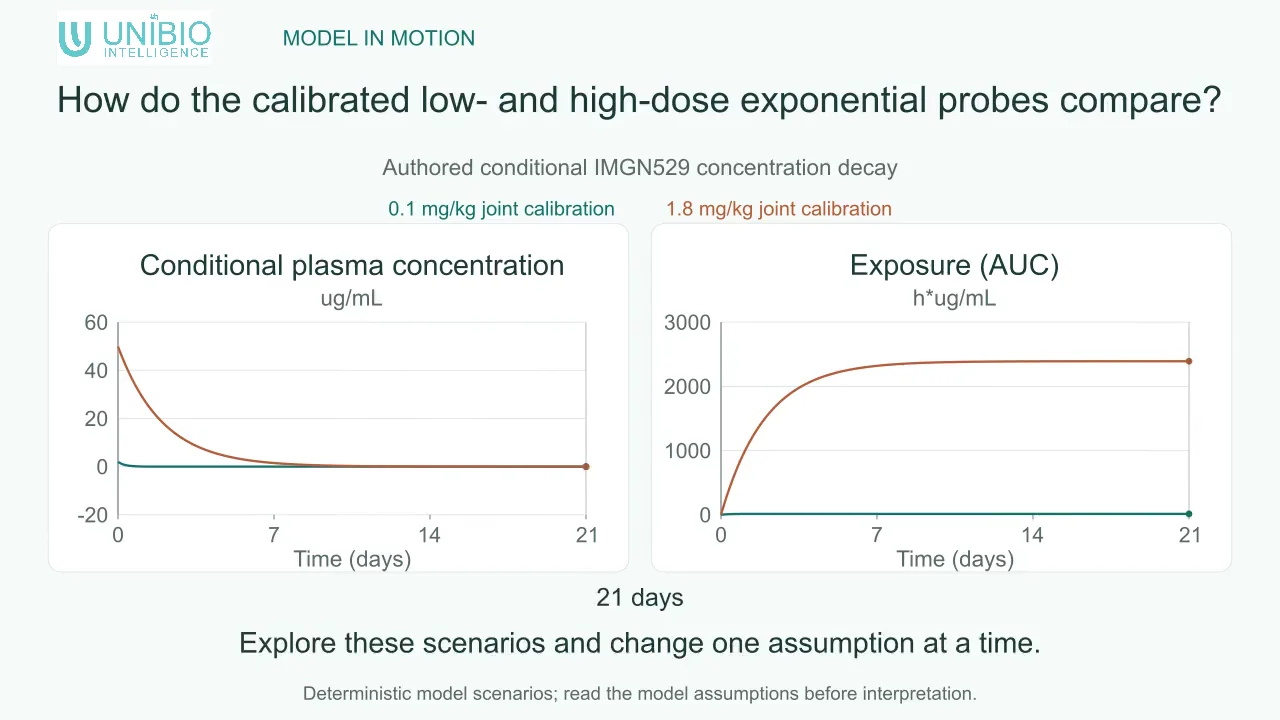

How do the calibrated low- and high-dose exponential probes compare?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Reported-summary initialization, 0.1 mg/kg context

Authored conditional exponential concentration decay from a specified initial concentration and fixed rate; not original patient PK, NCA recomputation or a structural TMDD fit.

0–504 hour

Scenario details

Reported-summary initialization, 0.1 mg/kg context

Authored conditional exponential concentration decay from a specified initial concentration and fixed rate; not original patient PK, NCA recomputation or a structural TMDD fit.

Readouts

Conditional plasma concentration · ug/mL
Fixed authored conditional quantity or reference input in the stated unit; not an independent observed patient endpoint.
Exposure (AUC) · h*ug/mL
Fixed authored conditional quantity or reference input in the stated unit; not an independent observed patient endpoint.
Modeled remaining AUC · h*ug/mL
Fixed authored conditional quantity or reference input in the stated unit; not an independent observed patient endpoint.
Assay quantitation ratio · dimensionless
Fixed authored conditional quantity or reference input in the stated unit; not an independent observed patient endpoint.

Study purpose

  • How do the model's key biological readouts change under reported-summary initialization, 0.1 mg/kg context?

Assumptions

  • Authored conditional concentration decay; no original individual PK, noncompartmental recomputation, population fit or clinical endpoint prediction.
  • Initial concentration is supplied by the selected preset. Nominal mg/kg dose is a context label, not an administered event or identified body-mass assignment.
  • The dose-curve coefficients are fixed authored interpolation inputs. Their legacy symbols do not establish mechanistic target-mediated clearance.
  • Concentration loss and C+loss=C0 use ug/mL, not eliminated drug mass. No source cohort-mean volume/clearance is assigned as a structural compartment.
  • Exposure and quantitation calculations follow the declared conditional backbone, including mathematical continuation below assay quantitation.
  • NCA mean/SD references are aggregate observations; absent SD cells are not zero variability and no population intervals are generated.

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Simulation time
h
h
504 → 168

Time between reported samples.

h
2 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

An authored conditional exponential backbone links specified initial concentrations and constant decay rates to exposure diagnostics. Aggregate cycle-one NCA summaries provide separate read-only reference information.

An authored conditional exponential backbone links specified initial concentrations and constant decay rates to exposure diagnostics. Aggregate cycle-one NCA summaries provide separate read-only reference information.

Model details

10 parameters · 4 states · 4 equations · 28 derived outputs

Classification & API access
Therapeutic
IMGN529 (naratuximab emtansine), Naratuximab
Modality
Antibody–drug conjugate (ADC)
Target
CD37 (source biological context, no binding state)
Disease / scope
Relapsed or refractory B-cell non-Hodgkin lymphoma
ParameterDefaultUnitDescription
Published plasma assay quantitation limitassay_lloq_ug_mL0.0199µg/mLFixed primary assay19.9ng/mL reference expressed in ug/mL.
Authored inverse exposure floorcalibrated_cl_linear_per_kg0.0006938154776056903L/h/kgFixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Authored dose curve inverse exposure scalecalibrated_cl_tmdd_per_kg0.015284385920209661L/h/kgFixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Authored dose curve concentration exponentcalibrated_cmax_power1.1163537122557567—Fixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Authored concentration scale atcalibrated_cmax_scale25.904302667367148µg/mLFixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Authored dose curve midpointcalibrated_ec50_mg_kg0.0818666062153864mg/kgFixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Authored dose curve shape exponentcalibrated_hill1.7994395624422985—Fixed authored dose-curve coefficient; not an original estimated patient/population PK parameter.
Nominal source dose contextselected_dose_mg_kg1.4mg/kgFixed source-summary context or declared conditional branch input.
Aggregate nca half-life referenceselected_half_life_h24.9hFixed source-summary context or declared conditional branch input.
Authored branch selectoruse_exploratory_calibrated0—Fixed source-summary context or declared conditional branch input.

Related models

Charged trastuzumab ADC plasma dispositionInotuzumab ozogamicin conditional pharmacokineticsT-DM1 and T-DXd conditional intact-ADC pharmacokineticsSKB264 tumor-growth inhibition
