Inotuzumab ozogamicin population PK

Reference paper ↗

A two-compartment population PK model for inotuzumab ozogamicin with linear and time-dependent clearance and clinically relevant body-size and disease covariates.

Therapeutic
Inotuzumab ozogamicin
Modality
Antibody–drug conjugate (ADC)
Target
SIGLEC2, CD22, B-cell receptor CD22
Disease
B-cell acute lymphoblastic leukemia and B-cell lymphoma
Model type
PopPK, ADC

Complete model workspace

Checking workspace access…

Parameters
19
States
4
Equations
4
Derived outputs
17

Explore this model

Choose a starting point to view its result. Adjust key model inputs when you want to explore a different outcome.

Starting configuration

ALL 1.8 mg/m2/cycle fractionated regimen dynamic

ALL 1.8 mg/m2/cycle fractionated regimen dynamic

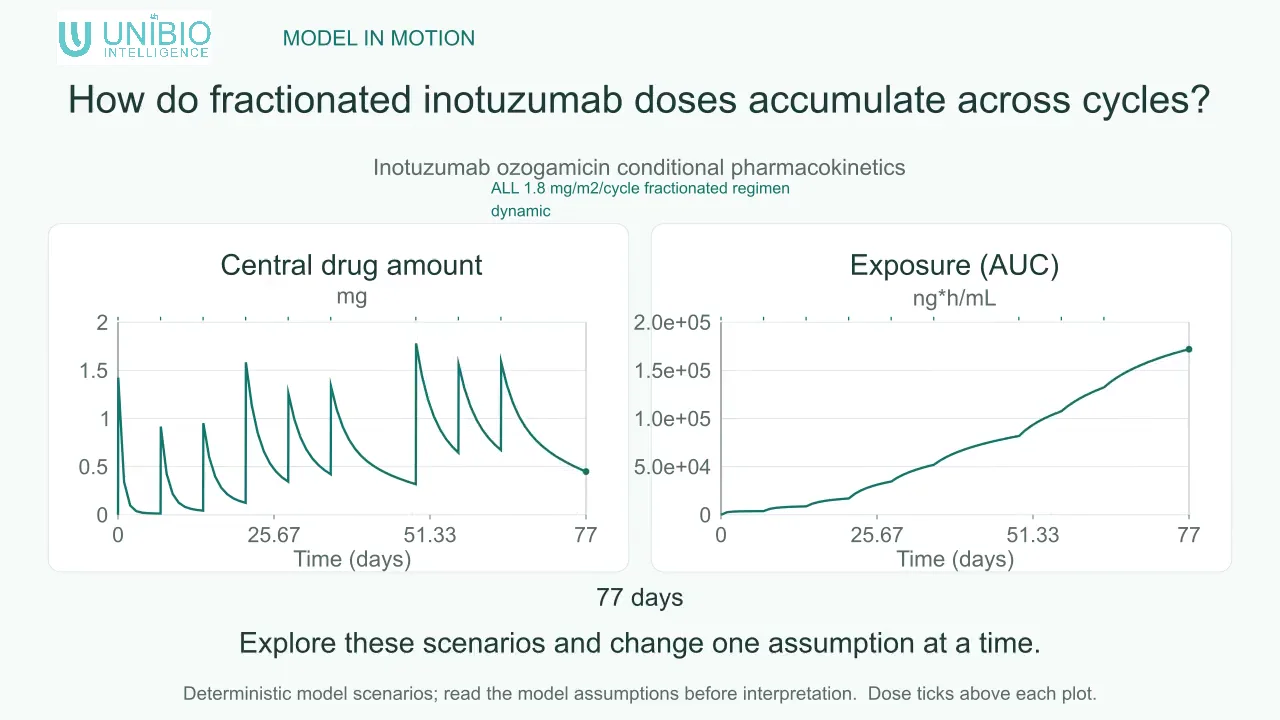

How do regimen and time-dependent clearance shape inotuzumab ozogamicin concentration and exposure? Explore this intervention regimen through Central inotuzumab ozogamicin, Cumulative ADC exposure, Total clearance, Clearance-desensitization rate.

Starting result

This result reflects the starting settings. Run your changes to update it.

Result preview could not load

The generated result could not be loaded. The inputs remain available below.

Starting configuration

Time: 0–1,848 hour; step 24

InputDefaultAvailable range
Baseline linear clearance0.113 L/h0.0565–0.1695 L/h
Baseline time-varying clearance0.369 L/h0.1845–0.5535 L/h
Baseline central distribution volume6.7 L3.35–10.05 L
Intercompartmental clearance0.0405 L/h0.02025–0.06075 L/h
Peripheral distribution volume5.1 L2.55–7.65 L

Expected readouts

Central inotuzumab ozogamicin · Exposure (AUC) (ng*h/mL) · Total clearance · Clearance desensitization rate

Adjustable model parameters

This public explorer exposes 5 curated parameters. Sign in to edit all 19 declared model parameters.

More key parameters (1)

How the model represents the biology

A two-compartment population PK model for inotuzumab ozogamicin with linear and time-dependent clearance and clinically relevant body-size and disease covariates.

How do distribution, covariates, and time-dependent clearance shape ADC exposure?Intravenous inotuzumab ozogamicin enters a central ADC pool, exchanges with a peripheral pool, and undergoes baseline plus exponentially decaying clearance. Body size and disease covariates alter disposition, while central concentration accumulates as exposure.BIOLOGY OVERVIEWHow do distribution, covariates, and time-dependent clearance shape ADC exposure?IV ADC inputInotuzumab ozogamicinCentral ADC exposurePlasma amount andconcentrationPeripheral ADCReversible distributionTime-dependentclearanceBaseline plus decayingcomponentClinical covariatesBody size and disease factorsCumulative ADCexposureCentral concentration integralPRIMARY READOUTSCentral ADC concentrationCentral ADC concentrationCumulative exposureCumulative exposureTotal clearanceTotal clearanceClearance-decay rateClearance-decay rate

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: CD22 binding, internalization, calicheamicin release, tumor-cell killing, efficacy, toxicity, and free-payload kinetics are not represented.

Modeled relationships (6)
  • IV ADC input → Central ADC exposure: IV input (flow)
  • Central ADC exposure ↔ Peripheral ADC: distribution (reversible exchange)
  • Central ADC exposure → Time-dependent clearance: CL1 + CL2(t) (loss)
  • Clinical covariates → Time-dependent clearance: scales CL (modulation)
  • Clinical covariates → Central ADC exposure: scales volume (modulation)
  • Central ADC exposure → Cumulative ADC exposure: integrates C (production)

Modeled relationships: IV ADC input to Central ADC exposure: IV input (flow); Central ADC exposure reversibly exchanges with Peripheral ADC: distribution (reversible exchange); Central ADC exposure to Time-dependent clearance: CL1 + CL2(t) (loss); Clinical covariates to Time-dependent clearance: scales CL (modulation); Clinical covariates to Central ADC exposure: scales volume (modulation); Central ADC exposure to Cumulative ADC exposure: integrates C (production).

Primary readouts: Central ADC concentration; Cumulative exposure; Total clearance; Clearance-decay rate.

Found a scientific issue? Email helpdesk@unibiointelligence.com with model ID garrett_2019_inotuzumab_ozogamicin_poppk.

Research use only — not for patient-specific prediction or dosing advice.
