ATC161 exposure and alpha-synuclein aggregate degradation

A reduced AUTOTAC PK/PD model linking ATC161 exposure to concentration-dependent degradation and recovery of alpha-synuclein aggregates.

Targeted degradation of ⍺-synuclein aggregates in Parkinson’s disease using the AUTOTAC technology ↗

Molecular Neurodegeneration

Exploration notes · What are you exploring?

Notes stay on this browser.

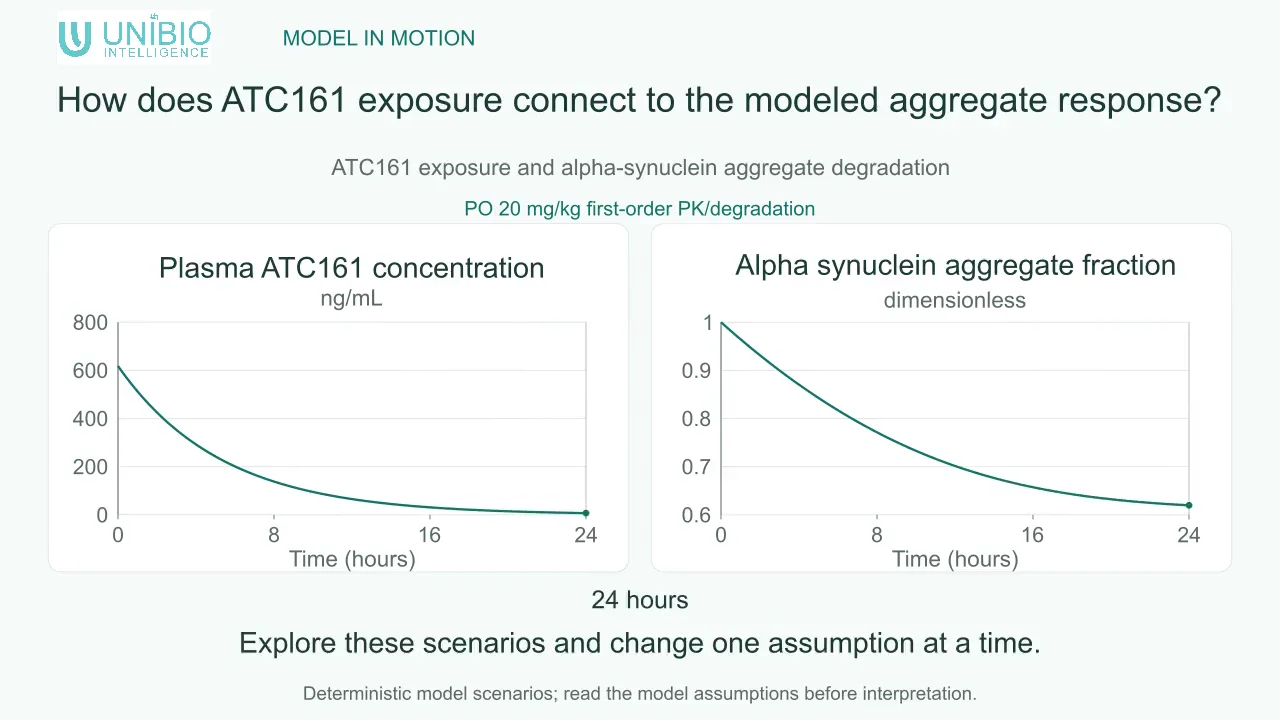

MODEL IN MOTION 18 sec

How does ATC161 exposure connect to the modeled aggregate response?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Starting example

PO 20 mg/kg first-order PK/degradation

PO 20 mg/kg first-order PK/degradation

How does ATC161 exposure control the time course and recovery of alpha-synuclein aggregate reduction? Explore this biological starting configuration through Plasma ATC161, ATC161 molar concentration, Aggregate degradation effect, Alpha-synuclein aggregate fraction.

0–24 h

Scenario details

PO 20 mg/kg first-order PK/degradation

How does ATC161 exposure control the time course and recovery of alpha-synuclein aggregate reduction? Explore this biological starting configuration through Plasma ATC161, ATC161 molar concentration, Aggregate degradation effect, Alpha-synuclein aggregate fraction.

Readouts

Plasma ATC161 concentration · ng/mL
Plasma ATC161 concentration over the selected simulation window.
ATC161 molar concentration · Unit unavailable
ATC161 molar concentration over the selected simulation window.
Aggregate degradation effect · Unit unavailable
Aggregate degradation effect over the selected simulation window.
Alpha synuclein aggregate fraction · dimensionless
Alpha synuclein aggregate fraction over the selected simulation window.

Study purpose

  • How does ATC161 exposure control the time course and recovery of alpha-synuclein aggregate reduction?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Oral ATC161 half-life controlling the time required for the corresponding quantity to decrease by half.

h

Suggested: 1.85–5.55. You can explore beyond this range.

3.7 → —

Half-maximal degradation concentration at which the corresponding modeled effect reaches half of its maximum.

nM

Suggested: 50–150. You can explore beyond this range.

100 → —

Aggregate degradation rate governing loss, degradation, or removal in the modeled biological process.

1/h

Suggested: 0.02–0.06. You can explore beyond this range.

0.04 → —

Aggregate recovery rate coefficient used by the released system of model equations.

1/h

Suggested: 5.00e-4–0.0015. You can explore beyond this range.

0.001 → —

Baseline aggregate fraction represented as a dimensionless fraction in the released equations.

—

Suggested: 0.5–1.5. You can explore beyond this range.

1 → —
Simulation time
h
h
24 → 168

Time between reported samples.

h
0.1 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

A scenario initializes plasma ATC161, which declines by first-order loss and generates a saturable aggregate-degradation drive. The aggregate fraction falls through exposure-driven degradation and recovers toward its baseline, while ATC161 exposure accumulates.

How does ATC161 exposure shift alpha-synuclein aggregate degradation and recovery?A scenario initializes plasma ATC161, which declines by first-order loss and generates a saturable aggregate-degradation drive. The aggregate fraction falls through exposure-driven degradation and recovers toward its baseline, while ATC161 exposure accumulates.BIOLOGY OVERVIEWHow does ATC161 exposure shift alpha-synuclein aggregate degradation and recovery?Plasma ATC161: Scenario-initialized exposurePlasma ATC161Scenario-initialized exposureATC161 loss: Half-life-driven decayATC161 lossHalf-life-driven decayDegradation drive: Saturable concentration effectDegradation driveSaturable concentration effectAggregate fraction: Alpha-synuclein aggregate stateAggregate fractionAlpha-synuclein aggregatestateBaseline recovery: Restores aggregate fractionBaseline recoveryRestores aggregate fractionCumulative exposure: ATC161 concentration integralCumulativeexposureATC161 concentration integralPRIMARY READOUTSPlasma ATC161Plasma ATC161ATC161 concentrationATC161 concentrationDegradation effectDegradation effectAggregate fractionAggregate fraction

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: Oral absorption, brain distribution, p62 recruitment, autophagosome or lysosome states, ternary-complex binding, aggregate species, and neuronal outcomes are not represented.

Modeled relationships (6)
  • Plasma ATC161 → ATC161 loss: first-order (loss)
  • Plasma ATC161 → Degradation drive: saturable effect (modulation)
  • Degradation drive → Aggregate fraction: aggregate loss (loss)
  • Aggregate fraction → Baseline recovery: baseline deficit (modulation)
  • Baseline recovery → Aggregate fraction: restoration (production)
  • Plasma ATC161 → Cumulative exposure: integrates C (production)

Modeled relationships: Plasma ATC161 to ATC161 loss: first-order (loss); Plasma ATC161 to Degradation drive: saturable effect (modulation); Degradation drive to Aggregate fraction: aggregate loss (loss); Aggregate fraction to Baseline recovery: baseline deficit (modulation); Baseline recovery to Aggregate fraction: restoration (production); Plasma ATC161 to Cumulative exposure: integrates C (production).

Primary readouts: Plasma ATC161; ATC161 concentration; Degradation effect; Aggregate fraction.

Model details

6 parameters · 3 states · 3 equations · 8 derived outputs

Classification & API access
Therapeutic
ATC161
Modality
Targeted protein degrader
Target
alpha-synuclein aggregates, SNCA aggregates, p62, SQSTM1
Disease / scope
Preclinical Parkinson disease and synucleinopathy models
ParameterDefaultUnitDescription
Aggregate degradation rateaggregate_degradation_k_h0.041/hAggregate degradation rate governing loss, degradation, or removal in the modeled biological process.
Aggregate recovery rateaggregate_recovery_k_h0.0011/hAggregate recovery rate coefficient used by the released system of model equations.
ATC161 mw gatc161_mw_g_mol624.274823533379g/molATC161 mw g coefficient used by the released system of model equations.
Oral ATC161 half-lifeatc161_po_half_life_h3.7hOral ATC161 half-life controlling the time required for the corresponding quantity to decrease by half.
Baseline aggregate fractionbaseline_aggregate_fraction1—Baseline aggregate fraction represented as a dimensionless fraction in the released equations.
Half-maximal degradation concentrationdc50_nM100nMHalf-maximal degradation concentration at which the corresponding modeled effect reaches half of its maximum.
