Dabigatran–idarucizumab reversal during cardiopulmonary bypass

A PK/PD model coupling dabigatran systemic and bypass-circuit disposition to effect-site concentration and idarucizumab exposure during cardiopulmonary bypass.

Dabigatran-idarucizumab pharmacokinetics-pharmacodynamics in sheep undergoing cardiopulmonary bypass ↗

Perfusion

Exploration notes · What are you exploring?

Notes stay on this browser.

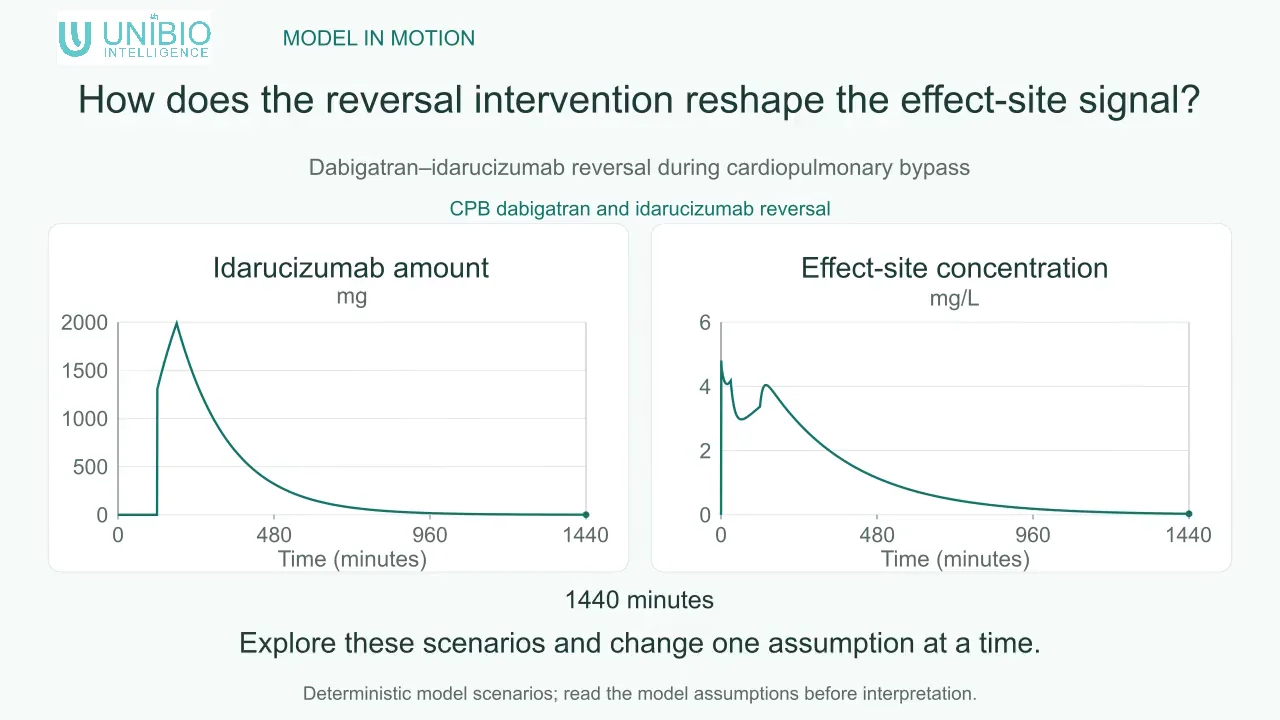

MODEL IN MOTION 18 sec

How does the reversal intervention reshape the effect-site signal?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Starting example

CPB dabigatran and idarucizumab reversal

CPB dabigatran and idarucizumab reversal

How do bypass-circuit exchange and idarucizumab exposure change dabigatran concentration and effect-site reversal? Explore this biological starting configuration through Central dabigatran concentration, Dabigatran effect-site concentration, Bypass-circuit dabigatran concentration, Idarucizumab concentration, Mean bypass dabigatran concentration.

0–1,440 minute

Scenario details

CPB dabigatran and idarucizumab reversal

How do bypass-circuit exchange and idarucizumab exposure change dabigatran concentration and effect-site reversal? Explore this biological starting configuration through Central dabigatran concentration, Dabigatran effect-site concentration, Bypass-circuit dabigatran concentration, Idarucizumab concentration, Mean bypass dabigatran concentration.

Readouts

Central dabigatran concentration · Unit unavailable
Central dabigatran concentration over the selected simulation window.
Effect-site concentration · mg/L
Effect-site concentration over the selected simulation window.
Bypass circuit dabigatran concentration · Unit unavailable
Bypass circuit dabigatran concentration over the selected simulation window.
Idarucizumab concentration · Unit unavailable
Idarucizumab concentration over the selected simulation window.
Mean bypass dabigatran concentration · Unit unavailable
Mean bypass dabigatran concentration over the selected simulation window.

Study purpose

  • How do bypass-circuit exchange and idarucizumab exposure change dabigatran concentration and effect-site reversal?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Standardized systemic clearance governing removal of modeled material from the relevant compartment.

L/minute

Suggested: 0.0255–0.0764. You can explore beyond this range.

0.0509 → —

Standardized central distribution volume used to convert modeled amount to concentration in the relevant compartment.

L

Suggested: 1.95–5.84. You can explore beyond this range.

3.89 → —

Circuit flow rate coefficient used by the released system of model equations.

L/min

Suggested: 0.91–2.73. You can explore beyond this range.

1.82 → —

Idarucizumab clearance governing removal of modeled material from the relevant compartment.

L/min

Suggested: 0.0197–0.0591. You can explore beyond this range.

0.0394 → —

Idarucizumab loading dose defining the modeled treatment input for the explored scenario.

mg/kg

Suggested: 25–75. You can explore beyond this range.

50 → —
Simulation time
minute
minute
1440 → 168

Time between reported samples.

minute

1 change · Variation 1

Continue in the background and keep the result.

Biology

A timed protocol independently supplies dabigatran and idarucizumab. Dabigatran distributes between central, peripheral, and CPB-circuit pools and equilibrates with an effect-site concentration. Idarucizumab has separate exposure and clearance; the released equations do not couple it to dabigatran or the effect site.

How do protocol-driven dabigatran and idarucizumab exposures evolve during CPB?A timed protocol independently supplies dabigatran and idarucizumab. Dabigatran distributes between central, peripheral, and CPB-circuit pools and equilibrates with an effect-site concentration. Idarucizumab has separate exposure and clearance; the released equations do not couple it to dabigatran or the effect site.BIOLOGY OVERVIEWHow do protocol-driven dabigatran and idarucizumab exposures evolve during CPB?Timed protocol inputs: Separate drug-rate schedulesTimed protocolinputsSeparate drug-rate schedulesCentral dabigatran: Systemic exposureCentral dabigatranSystemic exposurePeripheral dabigatran: Reversible distributionPeripheraldabigatranReversible distributionCPB circuit pool: Gated pump exchangeCPB circuit poolGated pump exchangeEffect-site concentration: Equilibrates with central drugEffect-siteconcentrationEquilibrates with central drugIdarucizumab exposure: Independent modeled amountIdarucizumabexposureIndependent modeled amountSeparate clearances: No modeled neutralization couplingSeparateclearancesNo modeled neutralizationcouplingPRIMARY READOUTSDabigatran concentrationDabigatran concentrationEffect-site concentrationEffect-site concentrationCPB circuit concentrationCPB circuit concentrationIdarucizumab concentrationIdarucizumab concentrationCPB mean dabigatranCPB mean dabigatran

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: Idarucizumab binding or neutralization of dabigatran, an idarucizumab-to-effect-site influence, coagulation, and a reaction-time response are not present in the released equations.

Modeled relationships (7)
  • Timed protocol inputs → Central dabigatran: dabigatran rates (flow)
  • Timed protocol inputs → Idarucizumab exposure: idarucizumab rates (flow)
  • Central dabigatran ↔ Peripheral dabigatran: distribution (reversible exchange)
  • Central dabigatran ↔ CPB circuit pool: CPB exchange (reversible exchange)
  • Central dabigatran → Effect-site concentration: equilibration (modulation)
  • Central dabigatran → Separate clearances: dabigatran CL (loss)
  • Idarucizumab exposure → Separate clearances: idarucizumab CL (loss)

Modeled relationships: Timed protocol inputs to Central dabigatran: dabigatran rates (flow); Timed protocol inputs to Idarucizumab exposure: idarucizumab rates (flow); Central dabigatran reversibly exchanges with Peripheral dabigatran: distribution (reversible exchange); Central dabigatran reversibly exchanges with CPB circuit pool: CPB exchange (reversible exchange); Central dabigatran to Effect-site concentration: equilibration (modulation); Central dabigatran to Separate clearances: dabigatran CL (loss); Idarucizumab exposure to Separate clearances: idarucizumab CL (loss).

Primary readouts: Dabigatran concentration; Effect-site concentration; CPB circuit concentration; Idarucizumab concentration; CPB mean dabigatran.

Model details

24 parameters · 7 states · 7 equations · 58 derived outputs

Classification & API access
Therapeutic
Dabigatran and idarucizumab
Modality
Antibody fragment
Target
Thrombin, Dabigatran
Disease / scope
Preclinical anticoagulation reversal during cardiopulmonary bypass
ParameterDefaultUnitDescription
Body weightbody_weight_kg25.98kgBody weight used for body-size scaling in the model.
Idarucizumab clearancecl_ida_l_min0.0394L/minIdarucizumab clearance governing removal of modeled material from the relevant compartment.
Standardized systemic clearancecl_std_l_min_70kg0.0509L/minuteStandardized systemic clearance governing removal of modeled material from the relevant compartment.
Cpb endcpb_end_min120minCpb end coefficient used by the released system of model equations.
Dab high enddab_high_end_min30minuteDab high end coefficient used by the released system of model equations.
Dab high ratedab_high_rate_mg_kg_min0.0175mg/kg/minDab high rate coefficient used by the released system of model equations.
Dab loading durationdab_loading_duration_min1minuteDab loading duration defining the modeled treatment input for the explored scenario.
Dab loadingdab_loading_mg_kg0.25mg/kgDab loading defining the modeled treatment input for the explored scenario.
Dab low ratedab_low_rate_mg_kg_min0.0075mg/kg/minDab low rate coefficient used by the released system of model equations.
Circuit flow rateflow_l_min1.82L/minCircuit flow rate coefficient used by the released system of model equations.
FV2 cpbfv2_cpb2.25—FV2 cpb coefficient used by the released system of model equations.
Idarucizumab loading durationida_loading_duration_min0.5minIdarucizumab loading duration defining the modeled treatment input for the explored scenario.
Idarucizumab loading doseida_loading_mg_kg50mg/kgIdarucizumab loading dose defining the modeled treatment input for the explored scenario.
Idarucizumab maintenance durationida_maintenance_duration_min60minIdarucizumab maintenance duration coefficient used by the released system of model equations.
Idarucizumab maintenanceida_maintenance_mg_kg50mg/kgIdarucizumab maintenance coefficient used by the released system of model equations.
Population Q3 flow factorpop_q3_flow_factor1—Population Q3 flow factor coefficient used by the released system of model equations.
Protocol enabledprotocol_enabled0—Protocol enabled coefficient used by the released system of model equations.
Pump volumepump_volume_l0.45LPump volume used to convert modeled amount to concentration in the relevant compartment.
Standardized intercompartmental clearanceq_std_l_min_70kg0.229L/minuteStandardized intercompartmental clearance governing exchange between model compartments.
Reference weightreference_weight_kg70kgReference weight coefficient used by the released system of model equations.
Teq half timeteq_half_time_min0.011minTeq half time coefficient used by the released system of model equations.
Standardized central distribution volumev1_std_l_70kg3.89LStandardized central distribution volume used to convert modeled amount to concentration in the relevant compartment.
Distribution volume 2 standardizedv2_std_l_70kg11.4LDistribution volume 2 standardized used to convert modeled amount to concentration in the relevant compartment.
V idarucizumabv_ida_l6.47LV idarucizumab coefficient used by the released system of model equations.
