Nivolumab exposure and tumor-size dynamics

An exposure-response model connecting nivolumab steady-state exposure to competing tumor shrinkage and progression processes and their resulting tumor-size trajectory.

Nivolumab dose selection: challenges, opportunities, and lessons learned for cancer immunotherapy ↗

Journal for ImmunoTherapy of Cancer

Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

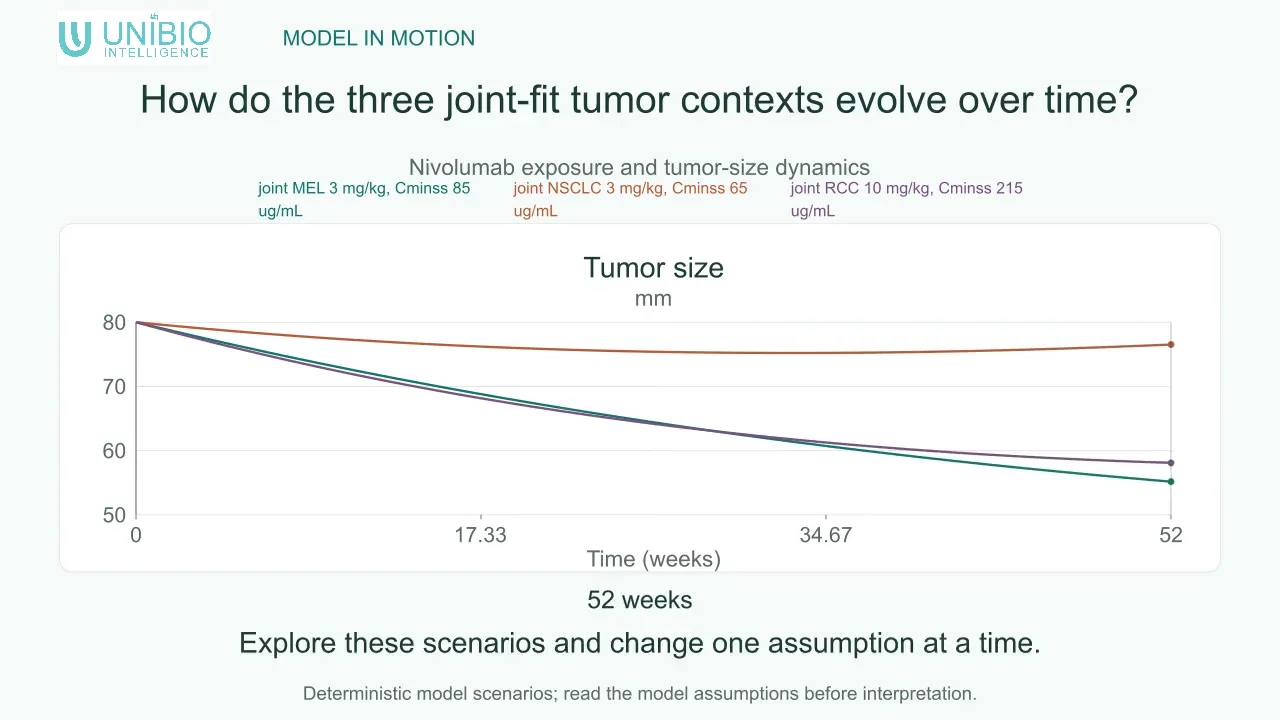

How do the three joint-fit tumor contexts evolve over time?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

joint MEL 3 mg/kg, Cminss 85 ug/mL

How does nivolumab exposure shift the balance between tumor shrinkage and progression? Explore this biological starting configuration through Steady-state trough concentration, Tumor size, Tumor size relative to baseline.

0–52 week

Scenario details

joint MEL 3 mg/kg, Cminss 85 ug/mL

How does nivolumab exposure shift the balance between tumor shrinkage and progression? Explore this biological starting configuration through Steady-state trough concentration, Tumor size, Tumor size relative to baseline.

Readouts

Steady-state trough concentration · Unit unavailable
Steady-state trough concentration over the selected simulation window.
Tumor size · mm
Tumor size over the selected simulation window.
Tumor size relative to baseline · percent
Tumor size relative to baseline over the selected simulation window.

Study purpose

  • How does nivolumab exposure shift the balance between tumor shrinkage and progression?

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Model parameter

Steady-state trough concentration coefficient used by the released system of model equations.

µg/mL

Suggested: 42.5–128. You can explore beyond this range.

85 → —

Maximum tumor shrinkage rate defining the limiting magnitude of the corresponding pharmacodynamic effect.

1/week

Suggested: 0.00728–0.0218. You can explore beyond this range.

0.01455 → —

Tumor-shrinkage half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.

µg/mL

Suggested: 28.4–85.3. You can explore beyond this range.

56.89 → —

Minimum tumor progression rate defining the limiting magnitude of the corresponding pharmacodynamic effect.

mm/week

Suggested: 0.0888–0.266. You can explore beyond this range.

0.1776 → —

Tumor-progression half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.

µg/mL

Suggested: 5.16–15.5. You can explore beyond this range.

10.33 → —
Simulation time
week
week
52 → 168

Time between reported samples.

week
0.25 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

A scenario-defined steady-state nivolumab trough concentration independently changes an empirical tumor-shrinkage rate and tumor-progression rate. Those opposing drives determine the exploratory tumor-size trajectory.

How does fixed nivolumab trough exposure shift tumor shrinkage and progression?A scenario-defined steady-state nivolumab trough concentration independently changes an empirical tumor-shrinkage rate and tumor-progression rate. Those opposing drives determine the exploratory tumor-size trajectory.BIOLOGY OVERVIEWHow does fixed nivolumab trough exposure shift tumor shrinkage and progression?Fixed trough exposure: Scenario-defined nivolumab CminssFixed troughexposureScenario-defined nivolumabCminssShrinkage drive: Exposure-dependent empirical rateShrinkage driveExposure-dependent empiricalrateProgression drive: Exposure-dependent empirical rateProgression driveExposure-dependent empiricalrateTumor size: Net shrinkage and progressionTumor sizeNet shrinkage and progressionPRIMARY READOUTSSteady-state trough exposureSteady-state trough exposu…Exploratory tumor sizeExploratory tumor sizeTumor size relative to baselineTumor size relative to bas…

Solid arrows show modeled movement or change; two-headed arrows show reversible exchange; dashed arrows show modulation without material transfer.

Model scope: Nivolumab dosing or PK, clearance, PD-1 binding or occupancy, immune-cell activation, population variability, and causal dose recommendations are not represented.

Modeled relationships (4)
  • Fixed trough exposure → Shrinkage drive: sets shrinkage (modulation)
  • Fixed trough exposure → Progression drive: sets progression (modulation)
  • Shrinkage drive → Tumor size: tumor reduction (loss)
  • Progression drive → Tumor size: tumor increase (production)

Modeled relationships: Fixed trough exposure to Shrinkage drive: sets shrinkage (modulation); Fixed trough exposure to Progression drive: sets progression (modulation); Shrinkage drive to Tumor size: tumor reduction (loss); Progression drive to Tumor size: tumor increase (production).

Primary readouts: Steady-state trough exposure; Exploratory tumor size; Tumor size relative to baseline.

Model details

12 parameters · 4 states · 4 equations · 6 derived outputs

Classification & API access
Therapeutic
Nivolumab
Modality
Monoclonal antibody
Target
PD-1 / PDCD1
Disease / scope
Melanoma, non-small cell lung cancer, and renal cell carcinoma
ParameterDefaultUnitDescription
Baseline tumor size percentbaseline_tumor_size_percent100percentBaseline tumor size percent coefficient used by the released system of model equations.
Baseline tumor size mmexploratory_baseline_tumor_size_mm80mmBaseline tumor size mm coefficient used by the released system of model equations.
Steady-state trough concentrationexploratory_cminss_ug_mL65µg/mLSteady-state trough concentration coefficient used by the released system of model equations.
Tumor-growth dynamics PR0exploratory_tgd_pr01.8mm/weekTumor-growth dynamics PR0 coefficient used by the released system of model equations.
Tumor-progression half-maximal concentrationexploratory_tgd_pr_ec5012.04238519µg/mLTumor-progression half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.
Tumor-growth dynamics pr hillexploratory_tgd_pr_hill1.078878937—Tumor-growth dynamics pr hill coefficient used by the released system of model equations.
Minimum tumor progression rateexploratory_tgd_prmin0.4594683975mm/weekMinimum tumor progression rate defining the limiting magnitude of the corresponding pharmacodynamic effect.
Tumor-growth dynamics SR0exploratory_tgd_sr00.0111/weekTumor-growth dynamics SR0 coefficient used by the released system of model equations.
Tumor-shrinkage half-maximal concentrationexploratory_tgd_sr_ec5093.46711474µg/mLTumor-shrinkage half-maximal concentration at which the corresponding modeled effect reaches half of its maximum.
Maximum tumor shrinkage rateexploratory_tgd_srmax0.01339778411/weekMaximum tumor shrinkage rate defining the limiting magnitude of the corresponding pharmacodynamic effect.
Progression rate percentprogression_rate_percent_per_week0percent/weekProgression rate percent coefficient used by the released system of model equations.
Shrinkage rateshrinkage_rate_per_week01/weekShrinkage rate coefficient used by the released system of model equations.
