Lanadelumab and the plasma kallikrein–kinin system in HAE

Plasma, endothelial-proximal and receptor-surface KKS dynamics with apparent SC lanadelumab PK and source smooth attack inputs.

A quantitative systems pharmacology model of plasma kallikrein-kinin system dysregulation in hereditary angioedema ↗

Journal of Pharmacokinetics and Pharmacodynamics

Exploration notes · What are you exploring?

Notes stay on this browser.

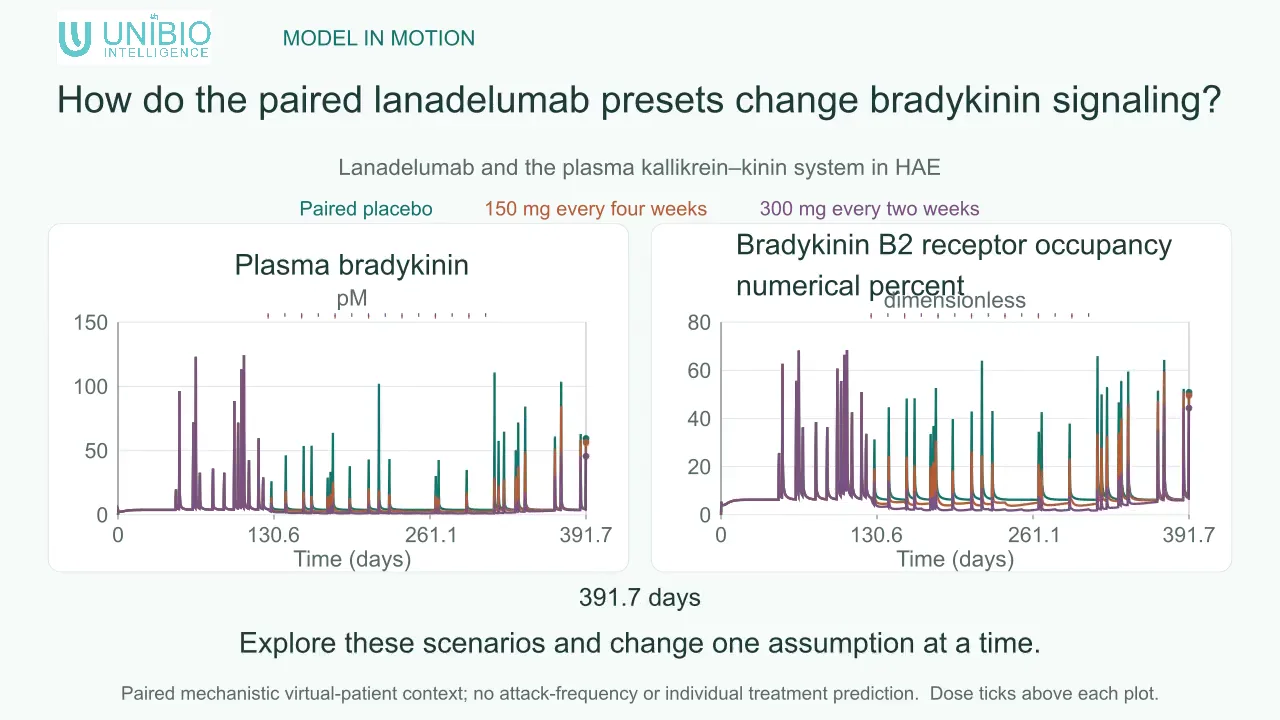

MODEL IN MOTION 18 sec

How do the paired lanadelumab presets change bradykinin signaling?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

First sampled virtual patient, 150 mg SC q2w lanadelumab

Frozen locally regenerated SI-code virtual sample (historical seed20260707), retaining the source administration schedule and0–9400hclock. No original-author raw patient data or clinical observations.

0–9,400 hour

Scenario details

First sampled virtual patient, 150 mg SC q2w lanadelumab

Frozen locally regenerated SI-code virtual sample (historical seed20260707), retaining the source administration schedule and0–9400hclock. No original-author raw patient data or clinical observations.

Readouts

Plasma lanadelumab concentration · ug/mL
Conditional model quantity; source-state units and selected conditions apply.
Plasma bradykinin · pM
Conditional model quantity; source-state units and selected conditions apply.
Cleaved hmwk numerical percent · %
100 times free cleaved plasma HMWK divided by free cleaved plus free uncleaved plasma HMWK. HMWK-containing complexes are excluded. The equation already gives a percentage; displayed values are not rescaled.

Study purpose

  • How do the model's key biological readouts change under first sampled virtual patient, 150 mg sc q2w lanadelumab?

Assumptions

  • Conditional mechanistic simulations; no original population estimation, virtual cohort, uncertainty interval or clinical treatment recommendation.
  • The frozen locally regenerated SI-code sample (historical seed20260707) contains 47 smooth FXII-autoactivation pulses. Regimen comparisons reuse that same schedule and PK coordinates; they are paired conditional calculations, not trial reproduction.
  • Lanadelumab PK drives binding in the KKS one way. Nominal drug amount uses apparent V/F and CL/F; it is not a measured total-body antibody mass or a TMDD mass balance.
  • The 20pM bradykinin flag is instantaneous. Source episode counts require the original half-hour grid and >= threshold rule; the flag alone is not monthly attack frequency.
  • Source percentage outputs already include the factor100. Normalized cHMWK is percent of basal, equals100 at its source reference and may exceed100; it is not a probability.
  • PK parameter exploration domains are virtual-sampler truncations, not clinically validated marginal ranges. Healthy C1-INH synthesis and mean-weight typical PK are separate source conditions.
  • Observer integrals start at the selected simulation start. They do not reconstruct earlier exposure or episodes.
  • C1-INH concentration increments have no therapeutic product/IU conversion. Full phase1b, nonadherence, hypothetical drug and stochastic source workflows remain pending.

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Pharmacokinetics

Apparent central volume after subcutaneous administration, in L. It divides absorbed input and apparent clearance in the concentration equation. The exploratory bounds are the pinned source virtual-patient sampling domain, not a clinical dose recommendation. Model limits: 7.52–32.7.

L
14.22 → —

Apparent clearance after subcutaneous administration, in L/h. Central loss is (CL/F)/(V/F) times plasma lanadelumab concentration. The exploratory bounds retain the source virtual-patient sampling domain. Model limits: 0.0123–0.0879.

L/h
0.0284 → —

First-order absorption rate from the subcutaneous depot, in 1/h. Absorbed depot amount enters the apparent central concentration equation. The exploratory bounds retain the source virtual-patient sampling domain. Model limits: 0.00613–0.0395.

1/h
0.0179 → —
Contact-system regulation

Constant plasma C1 inhibitor synthesis input, in nM/h. Changing synthesis does not reset the independently specified initial C1-INH concentration. The bounds span the selected HAE and healthy source settings. Model limits: 11.883–39.608.

nM/h
11.88 → —
Conditional forcing

Amplitude control for the selected smooth attack-forcing profile. Paired conditions retain the same frozen pulse schedule; this control does not specify clinical attack counts or a newly sampled patient. Model limits: 0–12.

—
12 → —
Simulation time
h
h
9400 → 168

Time between reported samples.

h
168 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

Plasma, endothelial-proximal and receptor-surface KKS dynamics with apparent SC lanadelumab PK and source smooth attack inputs.

Plasma, endothelial-proximal and receptor-surface KKS dynamics with apparent SC lanadelumab PK and source smooth attack inputs.

Model details

191 parameters · 65 states · 65 equations · 84 derived outputs

Classification & API access
Therapeutic
Lanadelumab
Modality
Monoclonal antibody
Target
Plasma kallikrein
Disease / scope
Hereditary angioedema due to C1-INH deficiency
ParameterDefaultUnitDescription
Aa aa fold maxAA_AA_Fold_Max12—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Aa aa t durationAA_AA_t_duration12hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Aa steepnessAA_Steepness0.01hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Aa fold norm 001AA_fold_norm_0010.213—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 002AA_fold_norm_0020.473—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 003AA_fold_norm_0030.459—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 004AA_fold_norm_0040.438—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 005AA_fold_norm_0050.24—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 006AA_fold_norm_0060.322—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 007AA_fold_norm_0070.302—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 008AA_fold_norm_0080.494—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 009AA_fold_norm_0090.382—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 010AA_fold_norm_0100.442—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 011AA_fold_norm_0110.422—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 012AA_fold_norm_0120.299—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 013AA_fold_norm_0130.412—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 014AA_fold_norm_0140.241—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 015AA_fold_norm_0150.25—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 016AA_fold_norm_0160.376—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 017AA_fold_norm_0170.407—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 018AA_fold_norm_0180.386—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 019AA_fold_norm_0190.283—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 020AA_fold_norm_0200.258—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 021AA_fold_norm_0210.342—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 022AA_fold_norm_0220.336—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 023AA_fold_norm_0230.364—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 024AA_fold_norm_0240.519—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 025AA_fold_norm_0250.352—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 026AA_fold_norm_0260.294—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 027AA_fold_norm_0270.301—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 028AA_fold_norm_0280.323—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 029AA_fold_norm_0290.549—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 030AA_fold_norm_0300.348—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 031AA_fold_norm_0310.393—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 032AA_fold_norm_0320.385—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 033AA_fold_norm_0330.359—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 034AA_fold_norm_0340.455—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 035AA_fold_norm_0350.435—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 036AA_fold_norm_0360.493—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 037AA_fold_norm_0370.439—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 038AA_fold_norm_0380.415—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 039AA_fold_norm_0390.392—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 040AA_fold_norm_0400.312—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 041AA_fold_norm_0410.44—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 042AA_fold_norm_0420.293—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 043AA_fold_norm_0430.292—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 044AA_fold_norm_0440.333—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 045AA_fold_norm_0450.245—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 046AA_fold_norm_0460.296—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa fold norm 047AA_fold_norm_0470.327—Acute attack normalized fold for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 001AA_onset_0011153.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 002AA_onset_0021224.1hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 003AA_onset_0031500.8hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 004AA_onset_0041551.7hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 005AA_onset_0051633hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 006AA_onset_0061896.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 007AA_onset_0072121.8hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 008AA_onset_0082325.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 009AA_onset_0092400.7hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 010AA_onset_0102466.1hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 011AA_onset_0112518.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 012AA_onset_0122619.2hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 013AA_onset_0132812.7hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 014AA_onset_0142904.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 015AA_onset_0153070.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 016AA_onset_0163358.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 017AA_onset_0173718.2hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 018AA_onset_0183876.8hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 019AA_onset_0194199.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 020AA_onset_0204256.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 021AA_onset_0214304.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 022AA_onset_0224643.6hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 023AA_onset_0235023.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 024AA_onset_0245229.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 025AA_onset_0255440.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 026AA_onset_0266371.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 027AA_onset_0276429.2hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 028AA_onset_0286992.2hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 029AA_onset_0297550.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 030AA_onset_0307632.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 031AA_onset_0317742.2hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 032AA_onset_0327977.6hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 033AA_onset_0338026.8hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 034AA_onset_0348167.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 035AA_onset_0358764.4hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 036AA_onset_0368889.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 037AA_onset_0379281hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 038AA_onset_0389389.5hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 039AA_onset_0399514.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 040AA_onset_0409615.9hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 041AA_onset_0419746.1hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 042AA_onset_04210035hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 043AA_onset_04310576.6hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 044AA_onset_04411582hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 045AA_onset_04511939.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 046AA_onset_04612066.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Aa onset 047AA_onset_04712201.3hAcute attack onset for the frozen locally regenerated SI-code virtual sample (historical seed20260707).
Bk thresholdBK_threshold0.02nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs avogadroCS_Avogadro6.02e+23count/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs cldCS_CLD2.88e-13L/cell/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs cld bkCS_CLD_BK8.64e-12L/cell/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init BDKRB2CS_INIT_BDKRB2100000count/cellAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init C1 inh in plasmaCS_INIT_C1Inh_in_plasma720nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init fxii in plasmaCS_INIT_FXII_in_plasma375nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init hmwk in plasmaCS_INIT_HMWK_in_plasma670nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init g c1q rCS_INIT_gC1qR100000count/cellAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs init pre kal in plasmaCS_INIT_preKAL_in_plasma450nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant kal lanadelumabCS_KD_KAL_Lanadelumab0.12nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant bk BDKRB2CS_Kd_BK_BDKRB20.5nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant C1 inh fxiiaCS_Kd_C1Inh_FXIIa1720nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant C1 inh kalCS_Kd_C1Inh_KAL150nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant fxii g c1q rCS_Kd_FXII_gC1qR144nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant fxiia g c1q rCS_Kd_FXIIa_gC1qR144nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant HK2 chain g c1q rCS_Kd_HK2Chain_gC1qR10.35nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant hmwk g c1q rCS_Kd_HMWK_gC1qR10.35nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant kal HK2 chainCS_Kd_KAL_HK2Chain72nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant kal hmwkCS_Kd_KAL_HMWK15nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs dissociation constant pre kal hmwkCS_Kd_preKAL_HMWK12nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs km fxii activationCS_Km_FXII_Activation510nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs km fxii auto activationCS_Km_FXII_AutoActivation110nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs km pre kal activationCS_Km_preKAL_Activation91nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs mw bkCS_MW_BK1060g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs mw C1 inhCS_MW_C1Inh105000g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs mw fxiiCS_MW_FXII80000g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs mw hkCS_MW_HK120000g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs mw pre kalCS_MW_preKAL85000g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs num of exchange rxnCS_Num_of_Exchange_Rxn10—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs num of plasma rxnCS_Num_of_Plasma_Rxn23—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs num of surface rxnCS_Num_of_Surface_Rxn29—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs num to conc converterCS_Num_to_Conc_converter0.207641196013289nM·cell/countAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs vmediumCS_Vmedium1.23e-12L/cellAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs vproximalCS_Vproximal8e-15L/cellAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs kcat fxii activationCS_kcat_FXII_Activation151/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs kcat fxii auto activationCS_kcat_FXII_AutoActivation0.04751/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs kcat hmwk cleavageCS_kcat_HMWK_cleavage394.741/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs kcat pre kal activationCS_kcat_preKAL_Activation181/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate BDKRB2CS_kdeg_BDKRB20.3465735902799731/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate bkCS_kdeg_BK55.45177444479561/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate bound C1 inhCS_kdeg_Bound_C1Inh13.86294361119891/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate C1 inhCS_kdeg_C1Inh0.01650350429904631/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate fxiiCS_kdeg_FXII0.01155245300933241/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate fxiiaCS_kdeg_FXIIa8.317766166719341/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate hmwkCS_kdeg_HMWK0.004414950194649331/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate kalCS_kdeg_KAL8.317766166719341/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate lanadelumab kal hmwk g c1q rCS_kdeg_Lanadelumab_KAL_HMWK_gC1qR0.3465735902799731/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate c hmwkCS_kdeg_cHMWK0.06180930272509071/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate g c1q rCS_kdeg_gC1qR0.3465735902799731/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs degradation rate pre kalCS_kdeg_preKAL0.0288811325233311/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate bk BDKRB2CS_kon_BK_BDKRB2361/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate C1 inh fxiiaCS_kon_C1Inh_FXIIa0.13321/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate C1 inh kalCS_kon_C1Inh_KAL0.06121/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate fxii g c1q rCS_kon_FXII_gC1qR0.44281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate fxiia g c1q rCS_kon_FXIIa_gC1qR0.44281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate HK2 chain g c1q rCS_kon_HK2Chain_gC1qR0.44281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate hmwk g c1q rCS_kon_HMWK_gC1qR0.44281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate kal HK2 chainCS_kon_KAL_HK2Chain4.4281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate kal hmwkCS_kon_KAL_HMWK4.4281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate kal lanadelumabCS_kon_KAL_Lanadelumab12.0961/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs association rate pre kal hmwkCS_kon_preKAL_HMWK4.4281/(nM·h)Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn BDKRB2CS_ksyn_BDKRB234657.3590279973count/cell/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn C1 inhCS_ksyn_C1Inh11.883nM/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn fxiiCS_ksyn_FXII10.83042nM/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn hmwkCS_ksyn_HMWK39.93322nM/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn g c1q rCS_ksyn_gC1qR34657.3590279973count/cell/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs ksyn pre kalCS_ksyn_preKAL41.58883nM/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs prct HK2 chain basalCS_prct_HK2Chain_basal35.6—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs scaling factorCS_scaling_factor1000000000—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf BDKRB2CS_thalf_BDKRB22hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf bkCS_thalf_BK0.0125hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf bound C1 inhCS_thalf_Bound_C1Inh0.05hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf C1 inhCS_thalf_C1Inh42hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf fxiiCS_thalf_FXII60hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf fxiiaCS_thalf_FXIIa0.0833333333333333hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf hmwkCS_thalf_HMWK157hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf kalCS_thalf_KAL0.0833333333333333hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf c hmwkCS_thalf_cHMWK11.2142857142857hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf g c1q rCS_thalf_gC1qR2hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Cs thalf pre kalCS_thalf_preKAL24hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Dose amountDose_amount150mgAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Dose intervalDose_interval336hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Init conc negligibleINIT_Conc_Negligible0nMAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
N doseN_dose13—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Num of aaNum_of_AA47—Author SI parameter extracted from the R parameter/input files or generated Param_AA.h.
PK clearance fPK_CL_F0.0284L/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
PK mwPK_MW150000g/molAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
PK v fPK_V_F14.22LAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
PK absorption ratePK_ka0.01791/hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Basal equilibrium durationbasal_equilibrium_duration1000hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Duration post last doseduration_post_last_dose2016hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Run in periodrun_in_period2016hAuthor SI parameter extracted from the R parameter/input files or generated Param_AA.h.
Validation run noncevalidation_run_nonce0—Unused nonce to avoid exact-validation job cache collisions.

Related models

Feedback: helpdesk@unibiointelligence.com.

Ubi Biologics
