Rituximab, ANCA and gammaglobulin turnover

Coupled two-compartment rituximab PK, gammaglobulin turnover and two-coordinate ANCA feedback.

Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

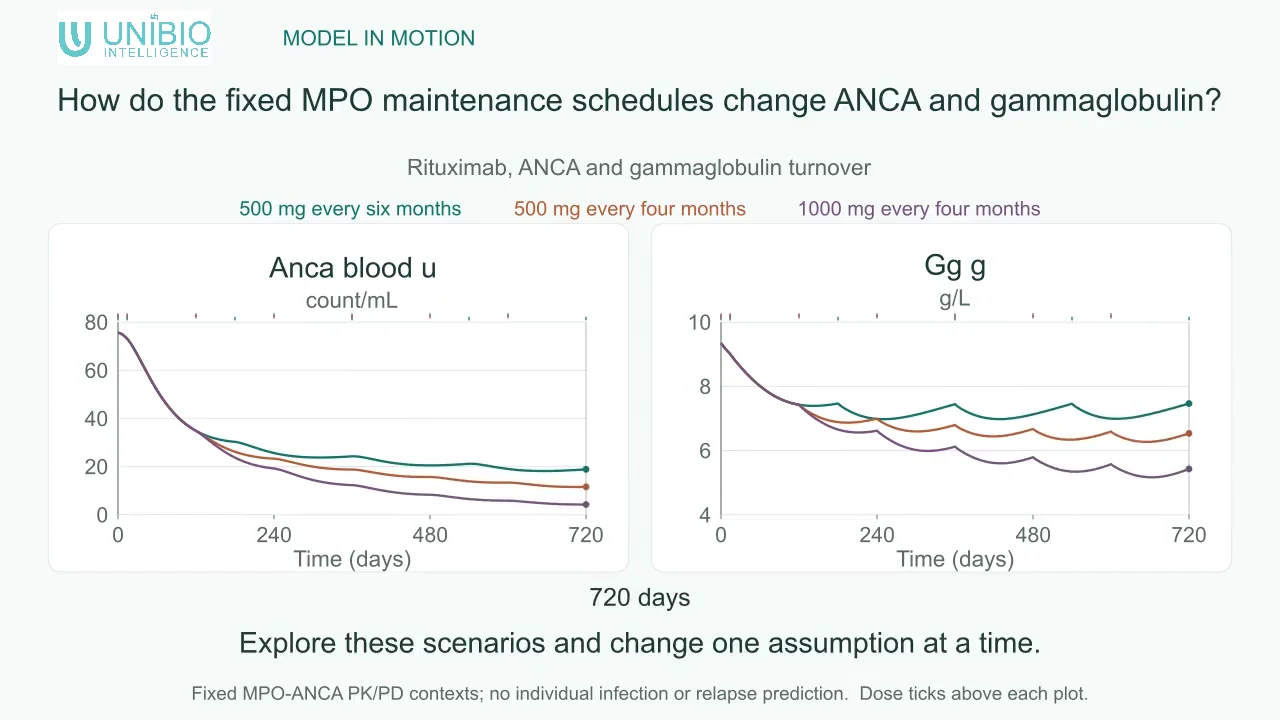

How do the fixed MPO maintenance schedules change ANCA and gammaglobulin?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

induction 375mgm2 q1w 6mo — MPO

Conditional reference-covariate trajectory with one-hour infusions and a30day month convention.

0–180 day

Scenario details

induction 375mgm2 q1w 6mo — MPO

Conditional reference-covariate trajectory with one-hour infusions and a30day month convention.

Readouts

Central concentration · mg/L
Conditional model quantity; exposure and elimination integrals are added nonfeedback accounting readouts.
Gg g · g/L
Gg g over the selected simulation window.
Anca blood u · count/mL
Anca blood u over the selected simulation window.
Anca baseline fraction · dimensionless
Anca baseline fraction over the selected simulation window.

Study purpose

  • How do the model's key biological readouts change under induction 375mgm2 q1w 6mo — mpo?

Assumptions

  • Conditional fixed-effect joint PK/PD, with no individual random deviations or residual observation noise.
  • Reference covariates follow Supplement S5: age52years, weight68kg, CRP11mg/L; sex is male unless explicitly changed.
  • Both ANCA compartments start at the CRP-conditioned baseline, and gammaglobulins start at their baseline. These coupled initial values are frozen with their inputs.
  • A month is represented by30days, an authored calendar convention. One-hour infusions follow the cohort methods; nominal event arrays do not reconstruct individual records.
  • The 375mg/m2 amount is667.5mg at the frozen1.78m2 administration reference; another BSA requires dose recalculation.
  • ANCA U/mL is a source assay calibration coordinate. The typed count/mL unit retains its numerical scale and is not a molecular count or enzyme-activity unit.
  • ANCA production is a latent model coordinate, not a directly measured blood compartment.
  • Published population medians, percentiles and threshold probabilities do not become conditional trajectory targets.
  • Clinical utility, infection/relapse risk, statistical fitting and the original1000-person simulation are not reconstructed.

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Simulation time
day
day
180 → 168

Time between reported samples.

day

1 change · Variation 1

Continue in the background and keep the result.

Biology

Compare exposure and antibody-turnover dynamics for six induction/maintenance designs and both ANCA subtypes.

Compare exposure and antibody-turnover dynamics for six induction/maintenance designs and both ANCA subtypes.

Model details

21 parameters · 7 states · 7 equations · 22 derived outputs

Classification & API access
Therapeutic
Rituximab
Modality
Monoclonal antibody
Target
CD20 / MS4A1
Disease / scope
ANCA-associated vasculitis
ParameterDefaultUnitDescription
Age clearance powerage_cl_power-0.33—Final Table2/SupplementS5 reference input; frozen within each conditional context.
Ageage_year52yearFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Base anca reference ubase_anca_reference_u_ml75.6count/mLFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Base gg gbase_gg_g_l9.35g/LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Clearance referencecl_reference_l_day0.15L/dayFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Crp baseline powercrp_baseline_power0.21—Final Table2/SupplementS5 reference input; frozen within each conditional context.
Crpcrp_mg_l11mg/LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Female clearance log effectfemale_cl_log_effect-0.23—Final Table2/SupplementS5 reference input; frozen within each conditional context.
Female flagfemale_flag0—Final Table2/SupplementS5 reference input; frozen within each conditional context.
Gamma ancagamma_anca0.03—Final Table2/SupplementS5 reference input; frozen within each conditional context.
IC50 anca referenceic50_anca_reference_mg_l264mg/LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
IC50 ggic50_gg_mg_l41.8mg/LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Turnover loss rate ggkout_gg_per_day0.00341/dayFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Mtt ancamtt_anca_day31.9dayFinal Table2/SupplementS5 reference input; frozen within each conditional context.
PR3 flagpr3_flag0—Final Table2/SupplementS5 reference input; frozen within each conditional context.
PR3 IC50 log effectpr3_ic50_log_effect-0.96—Final Table2/SupplementS5 reference input; frozen within each conditional context.
Intercompartmental clearanceq_l_day0.52L/dayFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Central distribution volume referencevc_reference_l2.61LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Peripheral distribution volumevp_l3.01LFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Weightweight_kg68kgFinal Table2/SupplementS5 reference input; frozen within each conditional context.
Weight central distribution volume powerweight_vc_power0.71—Final Table2/SupplementS5 reference input; frozen within each conditional context.
