Anti-CD66 · fixed antigen constraint1

Fixed antibody distribution, mono/bivalent CD66 binding, single-radiolabel turnover and finite-window measurement accounting.

Physiologically Based Pharmacokinetic Modeling Is Essential in90Y-Labeled Anti-CD66 Radioimmunotherapy ↗
Exploration notes · What are you exploring?

Notes stay on this browser.

MODEL IN MOTION 18 sec

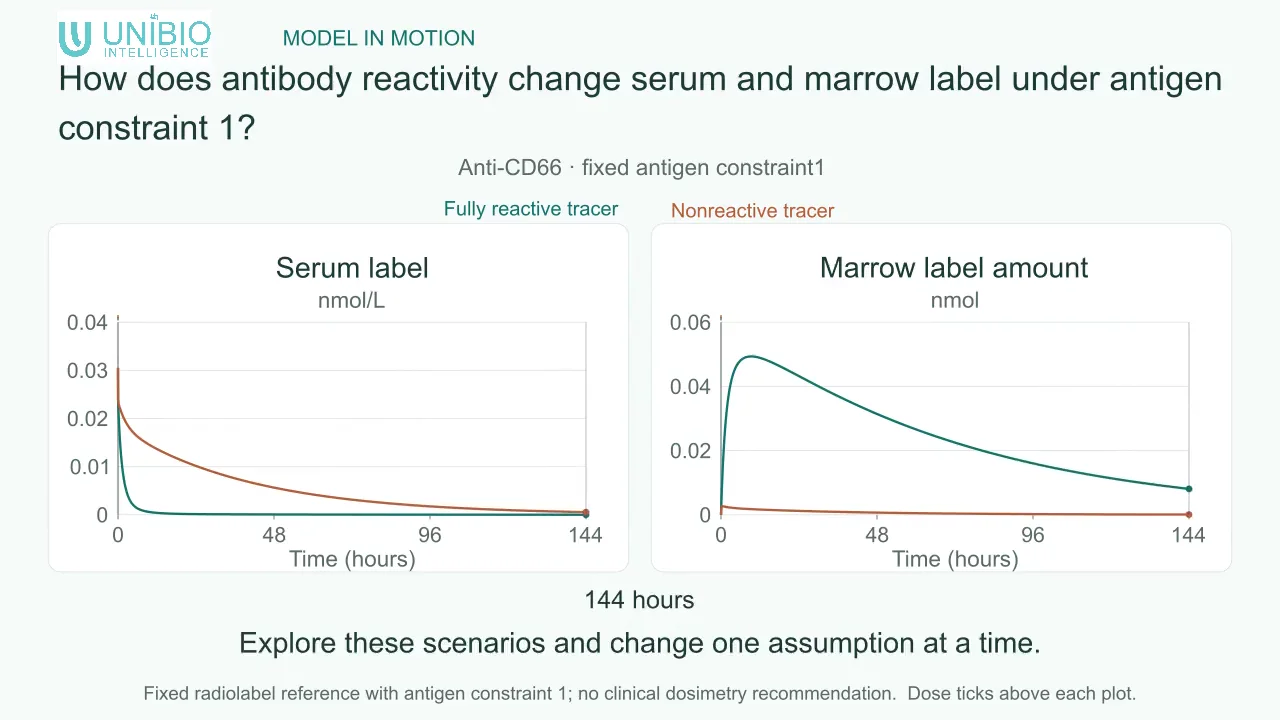

How does antibody reactivity change serum and marrow label under antigen constraint 1?

Run settings

Run location

Explore this model

Choose a scenario, adjust inputs, and run the simulation.

Tracer reference · 6days

Specified constant reference coefficients and matched material inputs; no individual parameter estimation or clinical dose selection.

0–144 hour

Scenario details

Tracer reference · 6days

Specified constant reference coefficients and matched material inputs; no individual parameter estimation or clinical dose selection.

Readouts

Serum label · nmol/L
Serum radiolabel signal, including weighted degradation material; SI Eq19.
Liver roi label · nmol
Liver measurement-region model signal; SI Eq17.
Marrow label · nmol
Whole red-marrow model signal, including vascular background.
Wholebody label · nmol
Retained labeled material; excludes excreted material.
Finite tia marrow · hour
Finite-window time-integrated signal divided by the specified labeled input; no infinite-tail or absorbed-dose inference.

Study purpose

  • How do the model's key biological readouts change under tracer reference · 6days?

Assumptions

  • Single-isotope material reference.
  • Mean coefficients and supplied body/organ-size inputs define one mathematical context.
  • Finite-window integrals do not calculate absorbed radiation dose.

Inputs changed since the displayed result. Run to update the comparison.

Loading starting example…

Edit inputs

Simulation time
h
h
144 → 168

Time between reported samples.

h
144 → 1

2 changes · Variation 1

Continue in the background and keep the result.

Biology

One-isotope fixed-reference PBPK with explicit reactivity classes, antigen occupancy, measured-signal functions and material accounting.

One-isotope fixed-reference PBPK with explicit reactivity classes, antigen occupancy, measured-signal functions and material accounting.

Model details

43 parameters · 91 states · 91 equations · 28 derived outputs

Classification & API access
Therapeutic
Anti-CD66 antibody BW250/183
Modality
Monoclonal antibody
Target
CD66
Disease / scope
Acute leukemia conditioning
ParameterDefaultUnitDescription
BwBW_kg70kgFixed matched physical coefficient or administration-reference quantity; editing is disabled.
EE16720001/cmFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Ht cmHT_cm170cmFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Apparent distribution volumeV2.99LFixed matched physical coefficient or administration-reference quantity; editing is disabled.
VroiVroi0.03LFixed matched physical coefficient or administration-reference quantity; editing is disabled.
AgagL0.31nmolFixed matched physical coefficient or administration-reference quantity; editing is disabled.
AgagS0.22nmolFixed matched physical coefficient or administration-reference quantity; editing is disabled.
C rmcRM1.22—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Dose reference nmolsdose_reference_nmols3.2517240896539032nmolFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Dose total nmolsdose_total_nmols3.2517240896539032nmolFixed matched physical coefficient or administration-reference quantity; editing is disabled.
ExexL0.235—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
ExexS0.107—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
F rmfRM0.0067—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Flow giflowGI0.16—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Circuit flow rateflowL0.065—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Circuit flow rateflowS0.03—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Flow total per vflow_total_per_V73.81/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Frac labeledfracLabeled0.021619999999999997—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Frac vgifracVGI0.076—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Frac vlfracVL0.1—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Frac vrmfracVRM0.04—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Frac vsfracVS0.014—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Half association factorhalf_association_factor2—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
IntintL0.04—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
IntintS0.04—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Kinkin0.1021/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Dissociation ratekoff3.59999999999999961/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Association ratekon0.36L/(nmol·h)Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Turnover loss ratekout0.31/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda clearancelambdaCl2.821/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda clexlambdaClex0.002341/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda dblambdaDb0.004081/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda dulambdaDu0.02341/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda META1lambdaMeta123.4000000000000021/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda META2lambdaMeta210.2000000000000011/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda META3lambdaMeta31.07999999999999981/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda META4lambdaMeta40.77999999999999991/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Lambda phylambdaPhy0.0103200000000000011/hFixed matched physical coefficient or administration-reference quantity; editing is disabled.
N cell rmnCellRM_per_kg188000000001/kgFixed matched physical coefficient or administration-reference quantity; editing is disabled.
Organ fractionorgan_fraction0.9—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
R cell umrCell_um6umFixed matched physical coefficient or administration-reference quantity; editing is disabled.
R imrIm0.801—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
Ratio rm bratioRM_B38—Fixed matched physical coefficient or administration-reference quantity; editing is disabled.
